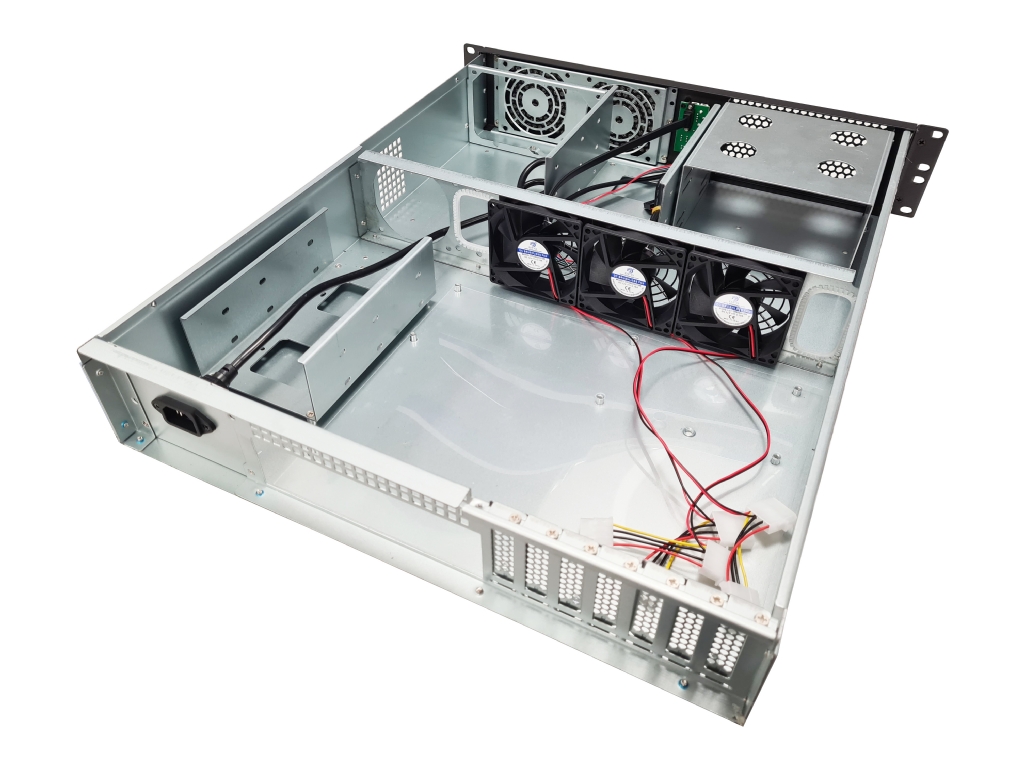

2U Short Depth Chassis - Supports 4x 3.5" Internal Bays
2U Short Depth Chassis - Supports 4x 3.5" Internal Bays
| PRODUCT CODE | SKU: SC-24550 |
|---|---|
| KEY PRODUCT FEATURES: |
|
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
-
Reliable and fast service -
Global distribution -
High quality & affordable -
Stock held in UK
| Technical Details | ||
|---|---|---|
| Case Form Factor | 2U Rackmount | |
| Motherboard Compatibility | Mini-ITX, Micro ATX, Standard ATX (12" x 10.5" Maximum) | |
| Drive Bays |
External 5.25" |
2 |
| External 3.5" | 0 | |
| Internal 3.5" | 4 (2x Front and 2x Rear) | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 0 |
| Low Profile | 7 | |
| Cooling | 3x 80mm Middle Fan Wall Included - 4pin Molex 1x 80mm Middle Fan Wall Optional 2x 80mm Front Fans Optional |
|
| Power Supply Form Factor | Standard ATX - Front Mounted - 80mm Fan Only | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 1 | |
| USB 3.0 | 1 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Silver | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | 430mm X 88mm X 550mm (WxHxD mm) | |
| Weight | 10kg (Approx) | |
| What's Included | ||
|
||
