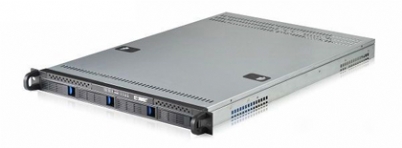

1U Server Case w/ 4x 3.5" Hot-Swappable SATA/SAS Drive Bays, Complete With Single 1U 600W PSU

Key Product Features:

Product Code/SKU: SC-1304-PLUS
1U Server Case w/ 4x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-1304-PLUS from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

1U Server Case w/ 4x 3.5" Hot-Swappable SATA/SAS Drive Bays, Complete With Single 1U 600W PSU

Product Details

The SC-1304 is a cost-effective and industrial graded high quality rackmount chassis. It supports 4 hot swappable SATA (I or II) / SAS hard drives. Four internal SATA / SAS connectors support up to four 3.5". It is perfect for A/V system, DVR, Home Theater server and corporate server.

Features:

  • 4x hot-swappable SATA/SAS drive bays
  • Four internal SATA / SAS connectors supports up to four 3.5" SATA/SAS hard disk drives;
  • 1 x slim CD-ROM bay, 4 x 3.5 " hot-swappable drive bays
  • Hot-swappable HDD tray with special designed power-off and lock mechanism.
  • Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
  • Redundant power connectors
  • RoHS Compliant
  • 6x 40mm ball bearing fans wall for better ventilation
  • Front accessible USB port
  • Smooth border prevent lacerating your ski
  • Includes a 600 Watt 1U server PSU



Specifications:

Drive Bay: 4 x hot-swappable SATA/SAS drive bays, 1 x slim CD-ROM bay
Cooling Fan: 6 x 40mm middle fans
Switch: Power ON/OFF x 1, System reset x 1
Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector:Two front accessible USB ports, Four internal SATA / SAS connector, two 4-pin molex redundant power connectors.
Motherboard Compatibility: Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")
Power Supply: Standard 1U 600W PSU Fitted in the -PLUS pack.
Dimensions ( W x D x H ): 19" x 25.5" x 1.7" (483mm x 650mm x 43.5mm)
Packing:Double boxes
Weight: 7.5 kg/16.5 lb (NET) 8.8 kg/19.4 lb (GROSS)
Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)



SPECIFICATION


Rated Watts  500W

Peak Watts   600W

D*W*H         200*100*80mm

Input           100-240v 47-63HZ

Output        4*D-4Pin,2*SATA,1*24Pin,1*8P,1*4P



Chassis Similar to Norco RPC-1204
