1U Server Case w/ 8 x 2.5" Hot-Swappable SATA/SAS Drive Bay, MiniSAS

Key Product Features:

  • 1U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • 1U Single PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 8 Hot-Swap Bays - 2.5"
  • 2 Slim ODD
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-1308
1U Server Case w/ 8 x 2.5

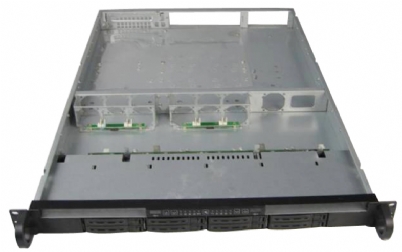

Photo 1

Specifications

The SC-1308 is a cost-effective and industrial graded high quality rackmount chassis. It supports 8 hot swappable SATA (I or II) / SAS hard drives. Two internal SFF-8087 Mini SAS connectors support up to eight 2.5". It is perfect for A/V system, DVR, Home Theater server and corporate server.  Multiple 2.5" Hot Swap Drive bays allows use of SSD's and HDD's and still use full RAID protection.


Features:

  • 8 x hot-swappable 2.5" SATA/SAS drive bay (Maximum Drive Height accepted - 9.5mm)
  • 2 x slim DVD bays
  • 2 x USB 2.0 front mounted ports
  • Two internal SFF-8087 Mini SAS connector supports up to eight 2.5" SATA/SAS hard disk drives;
  • Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
  • full height PCI expansion slot
  • Redundant power connectors
  • RoHS Compliant
  • Supplied with 6 x 40mm ball bearing fans in centre fan wall for better ventilation and thermal control.
  • Smooth border prevent lacerating your skin

Specifications:

Drive Bay: 8 x hot-swappable 2.5" SATA/SAS drive bays (Maximum Drive Height accepted - 9.5mm) plus 2 x slim DVD drive bays

External Connectivity:  Front mounted 2 x USB 2.0 ports.
Cooling Fan: Supplied with 6 x 40mm middle fans already fitted.
Switch: Power ON/OFF x 1, System reset x 1
Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2
Internal Connectors: The internal SFF-8087 Mini SAS connector, two 4-pin molex redundant power connectors.
Motherboard Compatibility: Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")

PCI Expandabilty: 1 full size PCI slot

CoolingSupplied with 6 x 40mm ball bearing fans
Power Supply Options: Standard 1U power supply
Dimensions ( L x W x H ): 650×430×44.5(L×W×H)mm
Packing:Cardboard boxes
Weight: 7.5 kg/16.5 lb (NET) 8.8 kg/19.4 lb (GROSS)
Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
