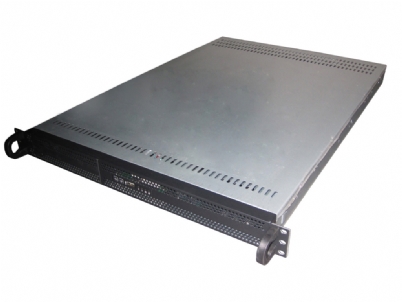

1U Standard Chassis 2 x 3.5" HDD + 1 x 5.25" CD

Key Product Features:

  • 1U Rackmount Form Factor
  • 550mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • 1U Single PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 1 Fixed Bays - External - 5.25"
  • 2 Fixed Bays - Internal - 3.5"
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-13550
1U Standard Chassis 2 x 3.5
Photo 1
Photo 2
Photo 3
Photo 4

Specifications

Product Overview


The SC-13550 offers a fantastic range of options for many different applications.  It is equally capable as a DVR, Audio Visual System, Media Server or Small Business Server.  Additionally its 1U format provides the perfect basis for a rack mounted system where this chassis forms the control server for a larger array of storage servers or JBOD's.

The SC-13550 and SC-13650 family of server chassis have been designed to offer both office and home user the perfect balance of system density, drive flexibilty and cost.



Features

  • 2 x 3.5" + 1 x 5.25" or 3 x 3.5" if no 5.25" drive installed
  • Support up to CEB motherboard
  • 6x40mm ball bearing fans for better ventilation
  • 2 x Front accessible USB ports
  • Smooth border with no sharp edges for easy handling



Specifications

  • Drive Bay: 2 x 3.5" + 1 x 5.25" (alternative internal HDD configuration  3 x 3.5" or up to 6 x 2.5" using 3 x SC-02A converter if no DVD required)
  • 4 x 2.5" SATA Hot Swap option available using additional SC-H250.
  • Cooling Fan: 6 x 40mm front fans
  • Switch: Power ON/OFF x 1, System reset x 1
  • Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 3
  • Connector: 2x front accessible USB port
  • Motherboard Compatibility: Supports, CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7")
  • Expansion: 1 x PCI or PCI-E
  • Power Supply: Standard 1U PSU
  • Dimensions: 5500MM(D)* 430MM(W)* 44.5MM(H) x 9Kg
  • Packing: Gross 7.80Kg.  Nett 6.50kg  carton box :730mm*560mm*115mm( single box)
  • Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
  • Relative Humidity: 5% to 95%,non-condensing
  • Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
  • Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
