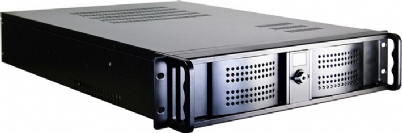

2.5U ATX Standard Chassis - Low Profile PCI Card Support

Key Product Features:

  • 2U Rackmount Form Factor
  • 535mm Chassis Depth
  • 430mm Chassis Width
  • 95mm Chassis Height
  • Standard ATX PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 1 Fixed Bays - External - 5.25"
  • 1 Fixed Bays - External - 3.5"
  • 6 Fixed Bays - Internal - 3.5"
  • 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-21535A-LP
2.5U ATX Standard Chassis - Low Profile PCI Card Support
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8

Specifications

Features:

  • 2.5U rackmount design,meets EIARS-310C standard.
  • 1 x 5.25" drive bays, 1 x 3.5" external drive bay, 6 x 3.5 " drive bays
  • Supports CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") motherboard
  • 1 x 80mm rear exhaust fan and 2 x optional 80mm x 20mm wide front fans
  • Front USB port
  • 7 x low profile PCI expansion slots.
  • Support Standard ATX power supply
  • Complete with aesthettically pleasing aluminium locking front bezel
  • front of case has filters to maintain the internal components in clean condition.

Specifications

Dimension 430mm(W)*95mm(H)*535mm(D)
packing  685mm(W)*175MM(H)*560(D)
Material SGCC ,THICKNESS 1.0MM
M/B Support 10.5"*13"
Extensibility 7 Low Profile PCI slots
on-off control 1*Power switch+1*Reset switch
1*LED(Power)+1*LED(HDD)
1*2.0USB
System cooling fans 1 x Rear 80mm + 2 x optional front 80mm*15mm/20mm fans
Drive Bays 1*5.25"(CD-ROM)+1*3.5"(FDD)+6*3.5"(HDD)
Power Supply Accepts standard ATX PS/2 PSU
