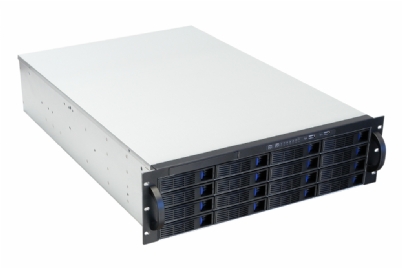

3U Server Case w/ 16x 3.5" Hot-Swappable SATA/SAS Drive Bays, MiniSAS, ATX PSU

Key Product Features:

  • 3U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 133mm Chassis Height
  • Standard ATX PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 2 Fixed Bays - Internal - 2.5"
  • 16 Hot-Swap Bays - 3.5"
  • 1 Slim ODD
  • 5 Full Height PCI Expansion Slots
Product Code/SKU: SC-316-ATX
3U Server Case w/ 16x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-316-ATX from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications





Technical Details
Case Form Factor 3U Rackmount
Motherboard Compatibility Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" x 6.7")
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 2
Hotswap 3.5" 16
Hotswap 2.5" 0
Slim Optical 1
Slim FDD 0
Hot-Swap Backplane SATA/SAS drive bays (4 x Mini SAS)
Expansion Slots Full Height 5
Low Profile 0
Cooling

3 x ball bearing 120mm Hot Swap fans in Centre Wall Plus 2 x 60mm rear fans for better ventilation

Power Supply Form Factor Standard ATX (PS2)power supply.
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 16.9" x 25.5" x 5.1 " (430mm x 650mm x 130.1mm)
Weight 16 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
