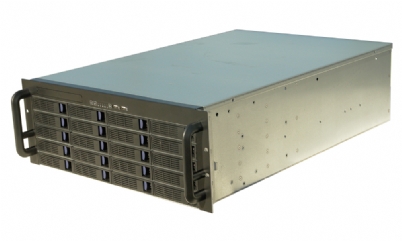

4U Server Case w/ 20 x 3.5" Hot-Swappable SATA/SAS Drive Bays, 6Gb/s MiniSAS + 1 x slim optical drive 650mm deep.

Key Product Features:

  • 4U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 2 Fixed Bays - Internal - 3.5"
  • 20 Hot-Swap Bays - 3.5"
  • 1 Slim ODD
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-4320
4U Server Case w/ 20 x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8
Photo 9

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-4320 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications





Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Support EEB (12"x13"), CEB (12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7")
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 2 (By using the drive converter SC-02A in the 2 internal 3.5" bays you can have up to 4 x 2.5" HDD / SSD internal drives)
Hotswap 3.5" 20
Hotswap 2.5" 0
Slim Optical 1
Slim FDD 0
Hot-Swap Backplane Five internal SFF-8087 Mini SAS connectors support up to twenty 6Gb/s 3.5" or 2.5" SATA (II or III) or SAS hard drives / SSD's
Expansion Slots Full Height 7
Low Profile 0
Cooling 4 x 80mm hot swap fans in centre plus 2 x 80mm rear exhaust fans (+ 1 additional 80mm rear exhaust if using 2U redundant supply)
Power Supply Form Factor Standard ATX power supply, mini redundant power supply, 3U redundant Supply, 2U redundant supply.
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 25.5" x 7.0" (483mm x 650mm x 176mm)
Weight 20 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
