3 x 3.5" SATA Hot Swap into 2 x 5.25" Drive Bays

Key Product Features:

  • 6G SATA III/SATA II/SAS Backplane
  • 3 Hot-Swap Bays - 3.5"
Product Code/SKU: SC-H300
3 x 3.5

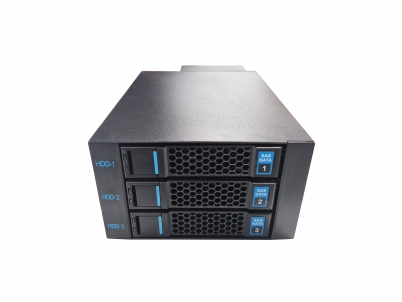

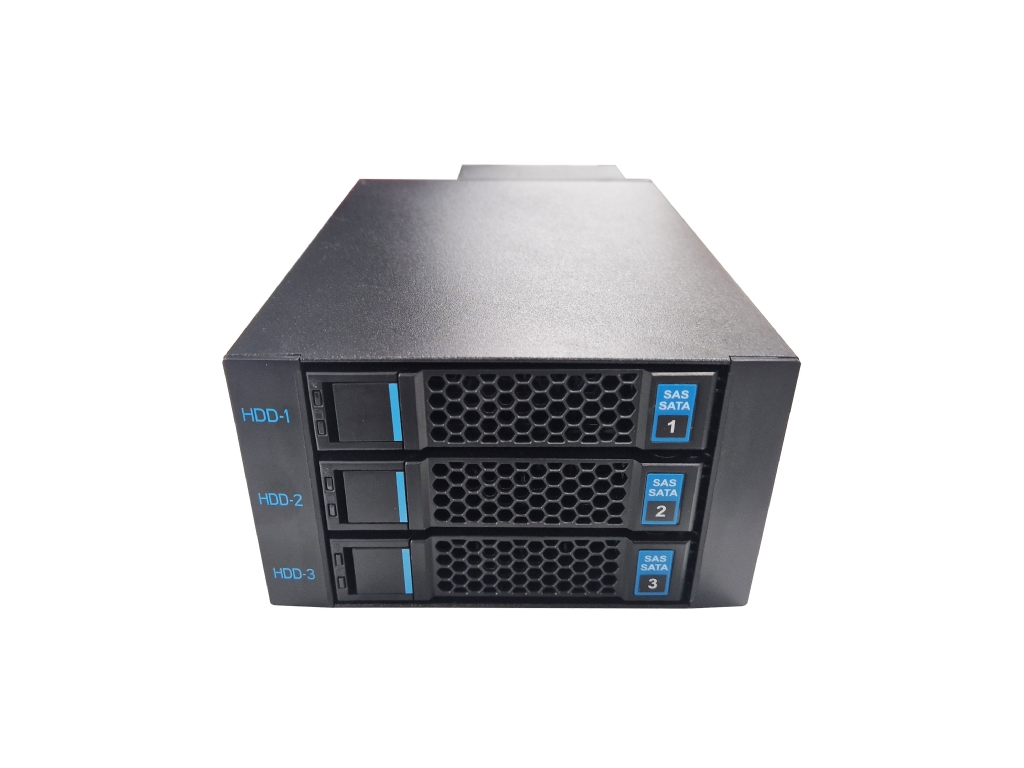

Photo 1
Photo 2
Photo 3

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-H300 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk


- SC-H300  3 x 3.5" SATA/SAS Hot Swap into 2 x 5.25" Drive Bays
- Supporting 3 Bay SATA-I, II amd III /SAS Hot-swap  6GB/s
- Steel material, ROHS compliance
- Electromagnetism shield design
- Redundant 2-pin molex power connectors
- Support hot-swap
- Supporting all operating systems
- Ball bearing fan with air duct
- Supporting RAID 0,1,5,6,10 functions( Raid card required)

Drive bay: turn 2×5.25" drive bay to 3×3.5" hot-swap drive bay
: 3 discrete SATA / SAS connectors
Fan sensor: Fan failure sensor
: overheating alarm
Cooling system: 1×80mm ball bearing fan with air duct providing excellent cooling air flow
RAID: support RAID 0,1,5,6,10 functions( Raid card required)
Power connector: 2×4-pin molex power connector
Data connector: 3×SATA( I, II or III) /SAS data port 6GB/s
Dimension(L×W×H): 220mm x 146mm x 84mm
Weight: 1.8 Kg


Similar to Norco SS-300
