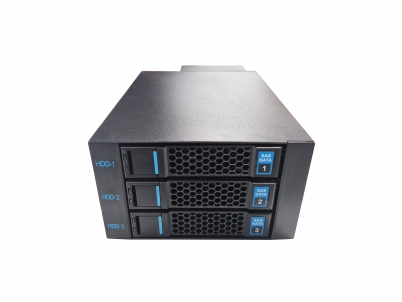

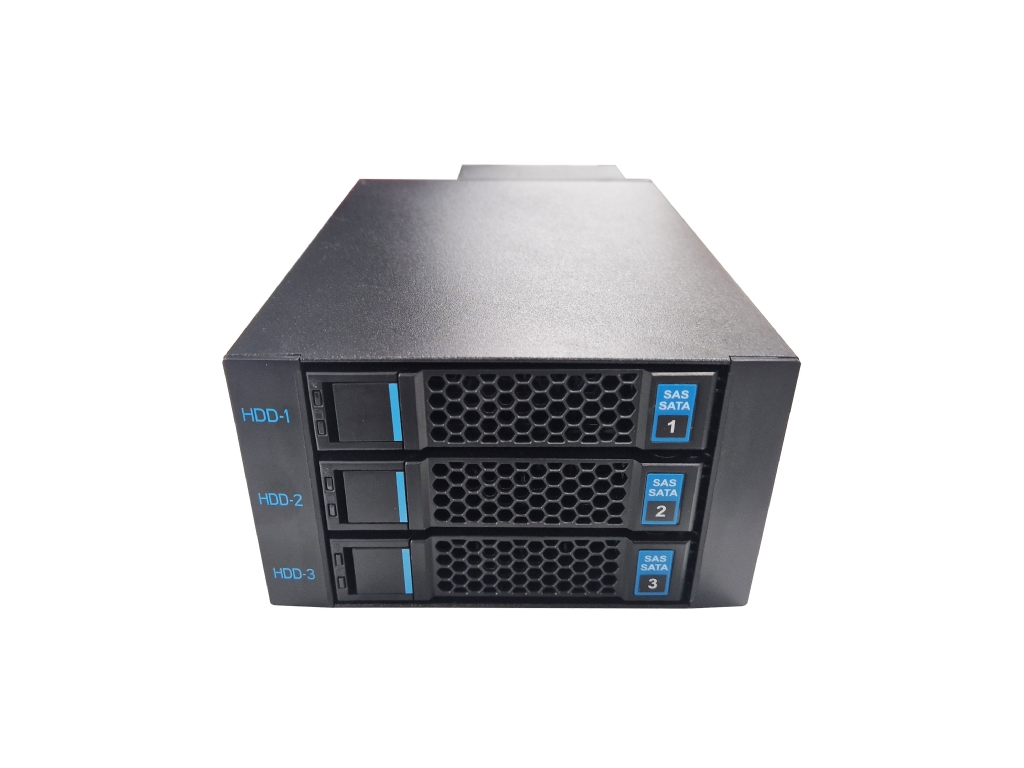

3 x 3.5" SATA Hot Swap into 2 x 5.25" Drive Bays

3 x 3.5" SATA Hot Swap into 2 x 5.25" Drive Bays

PRODUCT CODE SKU: SC-H300
KEY PRODUCT FEATURES:
  • 6G SATA III/SATA II/SAS Backplane
  • 3 Hot-Swap Bays - 3.5"
servercase-logo

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

01283 576162 | [email protected]

www.servercase.co.uk

BUY SC-H300 NOW shopping-icon
  • Reliable and fast service Reliable and fast service
  • Global distribution Global distribution
  • High quality & affordable High quality & affordable
  • Stock held in UK Stock held in UK
logo-icon

- SC-H300  3 x 3.5" SATA/SAS Hot Swap into 2 x 5.25" Drive Bays
- Supporting 3 Bay SATA-I, II amd III /SAS Hot-swap  6GB/s
- Steel material, ROHS compliance
- Electromagnetism shield design
- Redundant 2-pin molex power connectors
- Support hot-swap
- Supporting all operating systems
- Ball bearing fan with air duct
- Supporting RAID 0,1,5,6,10 functions( Raid card required)

Drive bay: turn 2×5.25" drive bay to 3×3.5" hot-swap drive bay
Interface
: 3 discrete SATA / SAS connectors
Fan sensor: Fan failure sensor
Alarm
: overheating alarm
Cooling system: 1×80mm ball bearing fan with air duct providing excellent cooling air flow
RAID: support RAID 0,1,5,6,10 functions( Raid card required)
Power connector: 2×4-pin molex power connector
Data connector: 3×SATA( I, II or III) /SAS data port 6GB/s
Dimension(L×W×H): 220mm x 146mm x 84mm
Weight: 1.8 Kg



Similar to Norco SS-300
