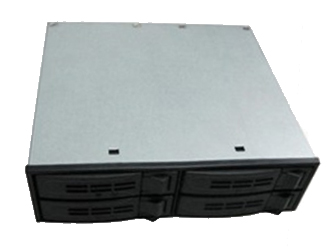

4 x 2.5" SATA Hot Swap into 1 x 5.25" Drive Bay

Key Product Features:

  • 6G SATA III/SATA II/SAS Backplane
  • 4 Hot-Swap Bays - 2.5"
Product Code/SKU: SC-H250
4 x 2.5
Photo 1
Photo 2
Photo 3

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-H250 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk


SC-H250  4 x 2.5" SATA/SAS Hot Swap into 1 x 5.25" Drive Bay
- Supporting 4 Bay SATA-I, II and III /SAS Hot-swap  6GB/s
- Steel material, ROHS compliance
- Electromagnetic shield design
- molex power connection
- Supports hot-swap
- Supports all operating systems
- Supporting RAID 0,1,5,6,10 functions( Raid card required)

Drive bay: turn 1×5.25" drive bay into 4×2.5" hot-swap drive bay
: 4 discrete SATA / SAS connectors
Fan sensor: Fan failure sensor
: overheating alarm
Cooling system: Provision for 2×40mm ball bearing fans with air duct providing excellent cooling air flow (fans not included)
RAID: supporting RAID 0,1,5,6,10 functions( Raid card required)
Power connector: 1×4-pin molex power connector
Data connector: 4×SATA( I, II or III) /SAS data port 6GB/s
Dimension(L×W×H): 220mm x 146mm x 42mm
Weight: 1 Kg


Similar to Norco SS-204
