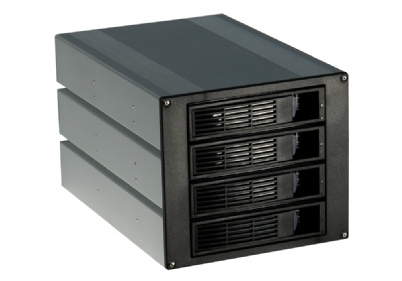

4 x 3.5" SATA Hot Swap into 3 x 5.25" Drive Bays

Key Product Features:

  • SATA II/SAS Backplane
  • 4 Hot-Swap Bays - 3.5"
Product Code/SKU: SC-H400
4 x 3.5
Photo 1
Photo 2
Photo 3
Photo 4

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-H400 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk



  • 4 Bay 3.5" SATA(I or II) or SAS Hot Swap Module;
  • All Aluminum Design with Heat Dissipation Grooves;
  • Support Plug & Play and Hot-Swappable Tray;
  • Electromagnetic Interference shield design;
  • RoHS compliance;
  • Two 4-pin Redundant molex PSU connectors;
  • One 80mm ball bearing cooling fan with air duct for effective air flow & cooling;
  • Drive bay guide slots allows for use in most desktop cases;
  • Power & HDD Busy LED indicators;
  • Support Windows XP, Vista, Windows 7, Linux, MAC etc
  • Supports RAID 0, 1, 5 functions (RAID card required)


Drive Bay: Requires a case with 3 empty 5.25" drive bays, converts them into 4 x 3.25" hot-swap drive bays.
Interface: SATA to SATA; SAS to SAS
Alarm: Overheating alarm
Cooling System:One 80mm ball bearing fan with air duct for effective air flow including fan failure sensor
RAID:Supports RAID 0, 1, 5 functions (RAID card required)
Power Connector: Two 4-pin molex PSU connectors
Data Connector: Four discrete SATA (I or II)/SAS data ports
Dimensions(L x W x H):8.5" x 5.8" x 5"  216mm x 147mm x 127mm
Weight: 5 lbs  2.3Kg

Warranty:2 Year Limited Return to Base Warranty (1st Year = Parts & Labor covered, 2nd Year = Labor only covered )


Similar to Norco SS-400
