Single 1U 350W PSU

Key Product Features:

  • 350W PSU Peak Wattage
  • 250W PSU Nominal Wattage
  • 1U Single PSU Type
Product Code/SKU: SC-SG1U350
Single 1U 350W PSU

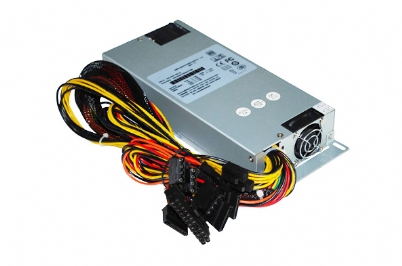

Photo 1

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-SG1U350 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website:



Technical Details
PSU Form Factor 1U Industrial
Nominal Wattage 250W
Max (Peak) Wattage 350W
80 Plus Certification N/A
Input Current 100-240v 47-63HZ
Output Current

+3.3v   14A
+5v      20A
+12v    16A
+5VSB  2A
-12v      0.5A
-5v        0.5A


3*Molex-4Pin: 300mm - 500mm
2*SATA: 300mm - 450mm
1*24Pin: 350mm
1*(4 pin + 4 pin) or 1*8 Pin EPS:  350mm

Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 2 x 40mm Fan
Dimensions & Weights
Packaging OEM
Dimensions D*W*H  200*100*40mm
Weight 1 kg (Approx)
What's Included
  • 1 x PSU
