Single 1U 400W PSU

Key Product Features:

  • 400W PSU Peak Wattage
  • 350W PSU Nominal Wattage
  • 1U Single PSU Type
Product Code/SKU: SC-SG1U400

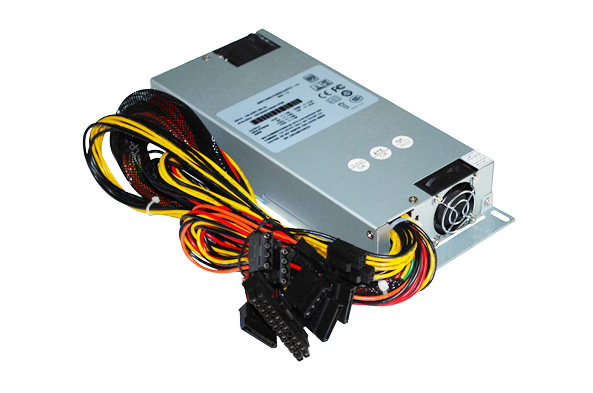

Single 1U 400W  PSU
Photo 1

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-SG1U400 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
PSU Form Factor 1U
Nominal Wattage 350W
Max (Peak) Wattage 400W
80 Plus Certification N/A
Input Current 100-240v 47-63HZ
Output Current

+3.3v  16A
+5v     25A
+12v   25A
-5v      0.5A
+5VSB  2A

Connectors

3 x Molex-4 Pin, 30cm - 40cm
3 x SATA, 25cm - 40cm
1*24 Pin,  38cm
1 x (4 Pin + 4 Pin) or 1 x 8 Pin EPS - 40cm

Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 2 x 40mm Fan
Dimensions & Weights
Packaging OEM
Dimensions D*W*H 200*100*40mm
Weight 1.1 kg (Approx)
What's Included
  • 1 x PSU
