Single 1U 400W 80 Plus PSU

Key Product Features:

  • 400W PSU Peak Wattage
  • 350W PSU Nominal Wattage
  • 1U Single PSU Type
Product Code/SKU: SC-SG1U400+
Single 1U 400W 80 Plus PSU

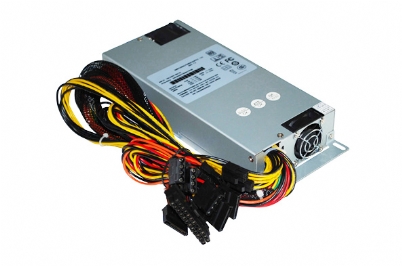

Photo 1

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-SG1U400+ from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
PSU Form Factor 1U Industrial
Nominal Wattage 350W
Max (Peak) Wattage 400W
80 Plus Certification 80 Plus Bronze
Input Current 100-240v 47-63HZ
Output Current

+3.3v  16A
+5v     25A
+12v   25A
-5v      0.5A

Connectors

3 x Molex-4 Pin, 30cm - 40cm
3 x SATA, 25cm - 40cm
1 X 24 Pin,  38cm
1 x (4 Pin + 4 Pin) or 1 x 8 Pin EPS - 40cm

Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 2 x 40mm Fan
Dimensions & Weights
Packaging OEM
Dimensions 200*100*40mm
Weight 1.85 kg (Approx)
What's In the Box
  • 1 x PSU
