Single 1U 500W 80 plus PSU

Key Product Features:

  • 500W PSU Peak Wattage
  • 400W PSU Nominal Wattage
  • 1U Single PSU Type
Product Code/SKU: SC-SG1U500

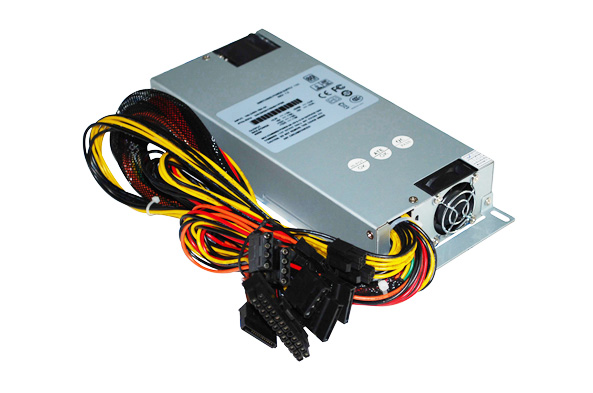

Single 1U 500W 80 plus PSU
Photo 1

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-SG1U500 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website:


Technical Details
PSU Form Factor 1U Industrial
Nominal Wattage 400W
Max (Peak) Wattage 500W
80 Plus Certification 80 Plus Bronze
Input Current 100-240v 47-63HZ
Output Current

+3.3v  16A
+5v     16A
+12v1  18A
+12v2  16A
+5vSB  2.5A
-5v       0.5A


2*4 pin + 4 Pin EPS (or 1x 8pin 12V EPS)

Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 2 x 40mm Fan
Dimensions & Weights
Packaging OEM
Dimensions D*W*H  220*100*40mm
Weight 1.10 kg (Approx)
