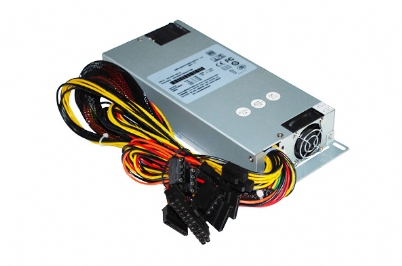

Single 1U 600W 80 plus PSU

Single 1U 600W 80 plus PSU

PRODUCT CODE SKU: SC-SG1U600
KEY PRODUCT FEATURES:
  • 600W PSU Peak Wattage
  • 500W PSU Nominal Wattage
  • 1U Single PSU Type
servercase-logo

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

01283 576162 | [email protected]

www.servercase.co.uk

BUY SC-SG1U600 NOW shopping-icon
  • Reliable and fast service Reliable and fast service
  • Global distribution Global distribution
  • High quality & affordable High quality & affordable
  • Stock held in UK Stock held in UK
logo-icon
Technical Details
PSU Form Factor 1U Industrial
Nominal Wattage 500W
Max (Peak) Wattage 600W
80 Plus Certification 80 Plus Bronze
Input Current 100-240v 47-63HZ
Output Current

+3.3v 20A
+5v    30A
+12v  40A
+5VSB 2.5A
-12v  0.5A

Connectors

4 x Molex-4Pin, 35cm - 65cm
5 x SATA, 40cm - 60cm
1 x 24Pin, 45cm
2 x (4 Pin + 4 Pin) or 2 x 8 Pin EPS, 1 x 35cm  1 x 45cm

Cooling 2x 40mm Fan
Dimensions & Weights
Packaging OEM
Dimensions 220*100*40mm (D*W*H mm)
Weight 1.85 Kg (Approx)
What's In The Box?
  • 1 x PSU
