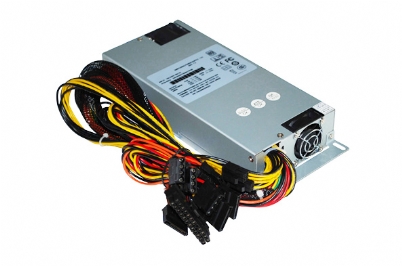

Single 1U 700W 80 plus PSU

Key Product Features:

  • 700W PSU Peak Wattage
  • 600W PSU Nominal Wattage
  • 1U Single PSU Type
Product Code/SKU: SC-SG1U700
Single 1U 700W 80 plus PSU
Photo 1

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-SG1U700 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website:


Technical Details
PSU Form Factor 1U Industrial
Nominal Wattage 600W
Max (Peak) Wattage 700W
80 Plus Certification 80 Plus Bronze
Input Current 100-240v 47-63HZ
Output Current

+3.3v   20A
+5v      30A
+12v1   27A
+12v2   27A
+5VSB  2.5A
-12v      0.5A


4*Molex-4Pin: 350mm - 650mm
5*SATA: 400mm - 600mm
1*24Pin: 450mm
2*(4 pin + 4 pin) or 2*8Pin EPS

Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 2x 40mm Fan
Dimensions & Weights
Packaging OEM
Dimensions  D*W*H 220*100*40mm
Weight 1.95 kg (Approx)
What's In The Box?
  • 1 x PSU
