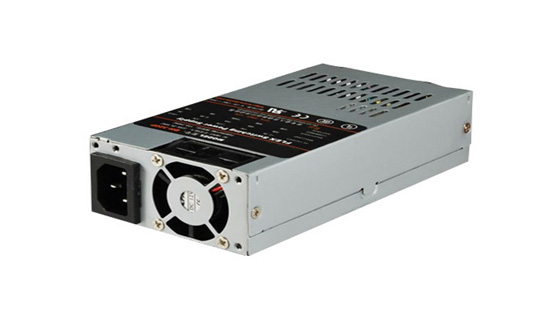

Single 1U Flex ATX 320W 80 Plus PSU (Not Suitable for Full Size Cases)

Key Product Features:

  • 320W PSU Peak Wattage
  • 200W PSU Nominal Wattage
  • Flex ATX PSU Type
Product Code/SKU: SC-FLEX1U320+
Single 1U Flex ATX 320W 80 Plus PSU (Not Suitable for Full Size Cases)
Photo 1

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-FLEX1U320+ from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
PSU Form Factor 1U Flex ATX
Nominal Wattage 250W
Max (Peak) Wattage 320W
80 Plus Certification 80 Plus Bronze
Input Current 100-240V, 47-63HZ
Output Current

+3.3v  10A
+5v     18A
+12v   15A
+5VSB  3A
-12v    0.5A

Connectors

1 X 24pin:30cm,
3 X 4pin Molex: 30cm-55cm
2 X SATA:30cm-50cm
1 X 4Pin P4 12V: 38cm

Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 1x 40mm Fan
Dimensions & Weights
Packaging OEM
Dimensions D*W*H180*100*40.6mm
Weight 0.75 kg (Approx)
What's In The Box?
  • 1 x PSU
