Single 1U Flex ATX 320W PSU (Not Suitable for Full Size Cases)

Key Product Features:

  • 320W PSU Peak Wattage
  • 200W PSU Nominal Wattage
  • Flex ATX PSU Type
Product Code/SKU: SC-FLEX1U320
Single 1U Flex ATX 320W PSU (Not Suitable for Full Size Cases)

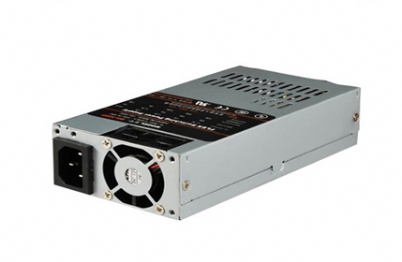

Photo 1

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-FLEX1U320 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website:


Technical Details
PSU Form Factor 1U Flex ATX
Nominal Wattage 200W
Max (Peak) Wattage 320W
80 Plus Certification N/A
Input Current 220V, 2A,50HZ
Output Current

+3.3v  10A
+5v     18A
+12v   15A
+5VSB  3A
-12v    0.5A

Connectors ATX 24pin
3*4pin Molex: 25cm-50cm
2*SATA: 30cm-40cm
1*4Pin P4 12V: 38cm

Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 1x 40mm Fan
Dimensions & Weights
Packaging OEM
Dimensions D*W*H150*81.5*40mm
Weight 0.6 kg (Approx)
What's In The Box?
  •  1 x PSU
