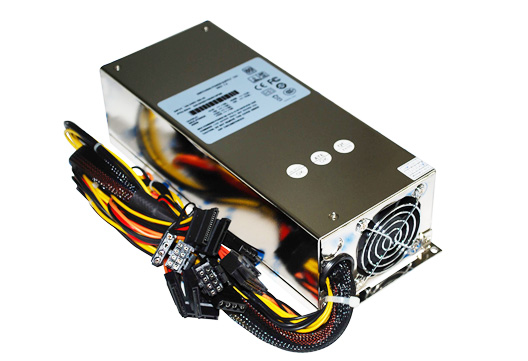

Single 2U 500W 80 Plus PSU

Key Product Features:

  • 500W PSU Peak Wattage
  • 480W PSU Nominal Wattage
  • 2U Single PSU Type
Product Code/SKU: SC-SG2U500
Single 2U 500W 80 Plus PSU
Photo 1

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-SG2U500 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
PSU Form Factor 2U Industrial
Nominal Wattage 400W
Max (Peak) Wattage 500W
80 Plus Certification 80 Plus Bronze
Input Current 100-240v 47-63HZ
Output Current

+3.3v    16A
+5v       16A
+12v1    18A
+12v2    16A
+5vSB    2.5A
-12v       0.5A

Connectors

4 * Molex-4Pin,           350mm - 650mm
5 * SATA,                   350mm - 650mm
1 * 24Pin,                   450mm
2 * 4 Pin + 4 pin EPS   1*350mm - 1*450mm

Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 1x 40mm Fan
Dimensions & Weights
Packaging OEM
Dimensions D*W*H 240*100*70mm
Weight 2.20 kg (Approx)
What's Included
  • 1 x PSU
