Single 2U 700W 80 Plus PSU

Key Product Features:

  • 700W PSU Peak Wattage
  • 600W PSU Nominal Wattage
  • 2U Single PSU Type
Product Code/SKU: SC-SG2U700
Single 2U 700W 80 Plus PSU

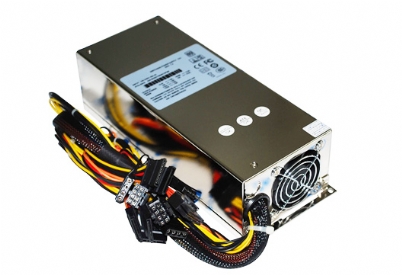

Photo 1

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-SG2U700 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
PSU Form Factor 2U Industrial
Nominal Wattage 600W
Max (Peak) Wattage 700W
80 Plus Certification 80 Plus Bronze
Input Current 90-264 VAC Wide voltage input – 50 to 60Hz
Output Current

+3.3v  20A
+5v     30A
+12v   25A rail 1
+12v   25A rail 2
+5VSB 2.5A
-12v    0.5A

Connectors

4 x Molex-4Pin, 35cm - 65cm
5 x SATA, 35cm - 65cm
1 x 24Pin, 45cm
2 x (4 Pin + 4 Pin) or 2 x 8 Pin EPS, 1 x 35cm  1 x 45cm

Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 2 x 60mm Fan
Dimensions & Weights
Packaging OEM
Dimensions 240mm (L) x 100mm(W) x 70.5mm(H)
Weight 2.70 kg (Approx)
What's Included
  • 1 x PSU
