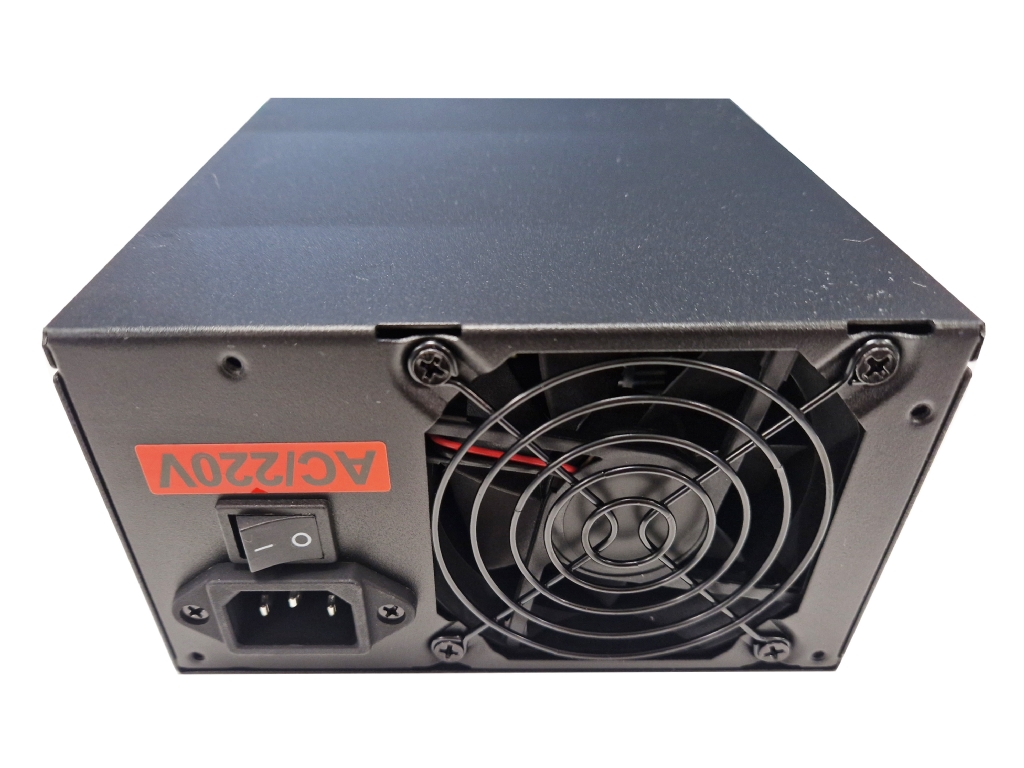

550W ATX PS/2 Server Grade PSU - 80 Plus Bronze - 2x 80mm Fans

Key Product Features:

  • 550W PSU Peak Wattage
  • 450W PSU Nominal Wattage
  • PS/2 PSU Type
Product Code/SKU: SC-ATX550
550W ATX PS/2 Server Grade PSU - 80 Plus Bronze - 2x 80mm Fans
Photo 1

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-ATX550 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
PSU Form Factor Standard ATX
Nominal Wattage 450W
Max (Peak) Wattage 550W
80 Plus Certification 80 Plus Bronze
Input Current 90VAC-264VAC (Max 6.3A)
Output Current +5V - 18A
+3.3V - 19A
+12V1 - 18A
+12V2 - 16A
-12V - 0.3A
+5VSB - 2A
Connectors 1x 20+4pin ATX
3x Molex
1x 4+4 Pin 12V (8pin EPS)
1x PCIe 6pin
3x SATA
Temperatures Operating Temperature 0 to 50*C
Non-Operating Temperature -40 to 70*C
Cooling 2x 80mm Fans
Dimensions & Weights
Packaging OEM
Dimensions 151mm x 87mm x 157mm (WxHxD mm)
Weight 2kg (Approx)
What's Included
  • 1 x PSU
