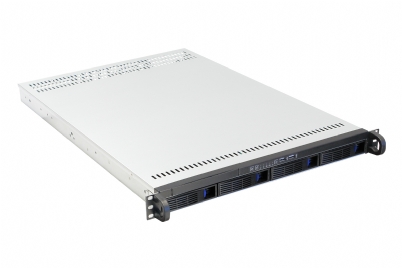

1U Server Case w/ 4x 3.5" Hot-Swappable SATA/SAS Drive Bays

Key Product Features:

  • 1U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • 1U Single PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 2 Fixed Bays - Internal - 2.5"
  • 4 Hot-Swap Bays - 3.5"
  • 1 Slim ODD
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-1304
1U Server Case w/ 4x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6

Specifications

The SC-1304 is a cost-effective and industrial graded high quality rackmount chassis. It supports 4 hot swappable SATA (I or II) / SAS hard drives. Four internal SATA / SAS connectors support up to four 3.5". It is perfect for A/V system, DVR, Home Theater server and corporate server.

Features:

  • 4x 3.5"/2.5" hot-swappable SATA/SAS drive bays plus 2 x internal 2.5" drive bays (maximum height of drives 9.5mm) plus 1 x slim CD-ROM bay
  • Four internal SATA / SAS connectors supports up to four Hot Swappable 3.5" SATA/SAS hard disk drives;
  • 1 x slim CD-ROM bay, 4 x 3.5 " hot-swappable drive bays
  • Hot-swappable HDD tray with special designed power-off and lock mechanism.
  • Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
  • RoHS Compliant
  • 6x 40mm ball bearing fans wall for better ventilation
  • 2 x Front accessible USB ports
  • Smooth border prevent lacerating your ski



Specifications:

Drive Bay: 4 x 3.5" or 2.5" hot-swappable SATA/SAS drive bays plus 2 x internal 2.5" drive bays (maximum height of drives 9.5mm) plus 1 x slim CD-ROM bay
Cooling Fan: 6 x 40mm middle fans
Switch: Power ON/OFF x 1, System reset x 1
Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector:Two front accessible USB ports, Four internal discrete SATA / SAS connectors, 4-pin molex power connector.
Motherboard Compatibility: Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")
Power Supply Options: Standard 1U ATX power supply
Dimensions ( W x D x H ): 19" x 25.5" x 1.7" (483mm x 650mm x 44.5mm)
Packing:Cardboard box 830mm x 560mm x 115mm
Weight: 7.65 kg/16.9 lb (NET) 9.55 kg/21 lb (GROSS)
Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)



Similar to Norco RPC-1204
