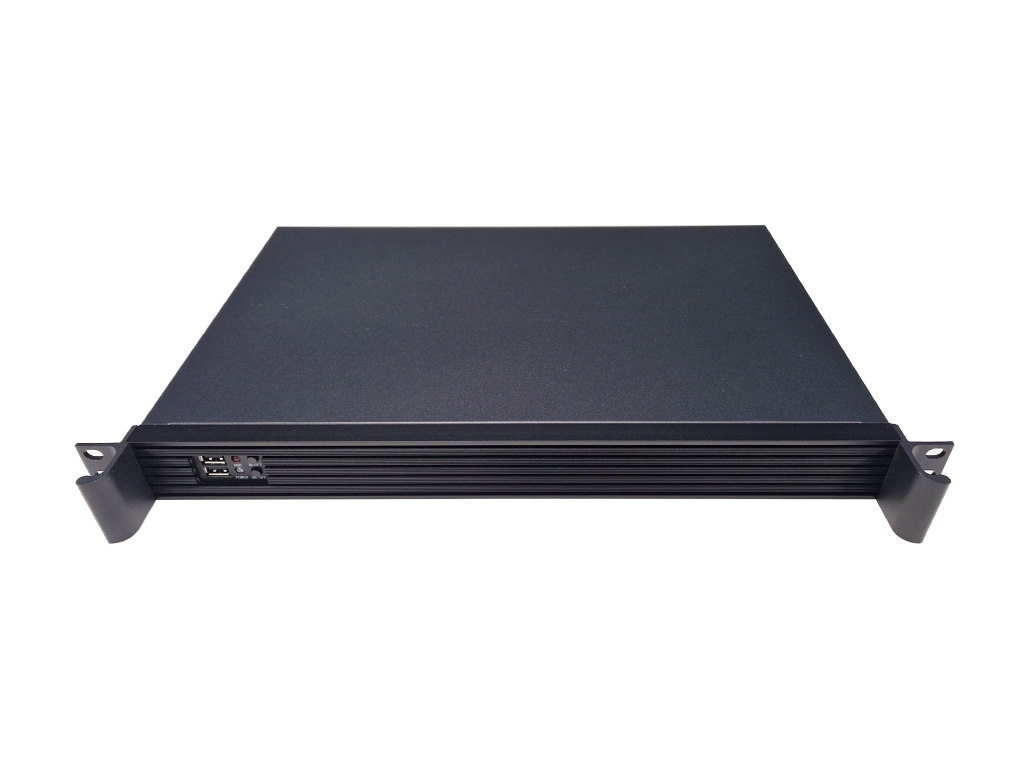

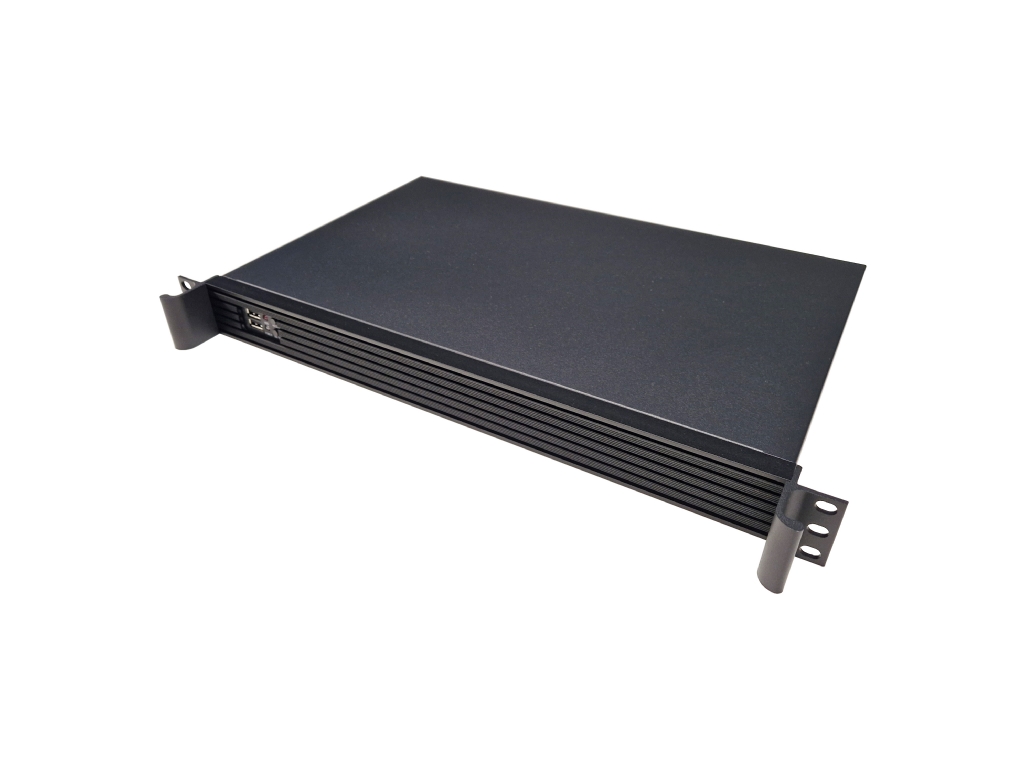

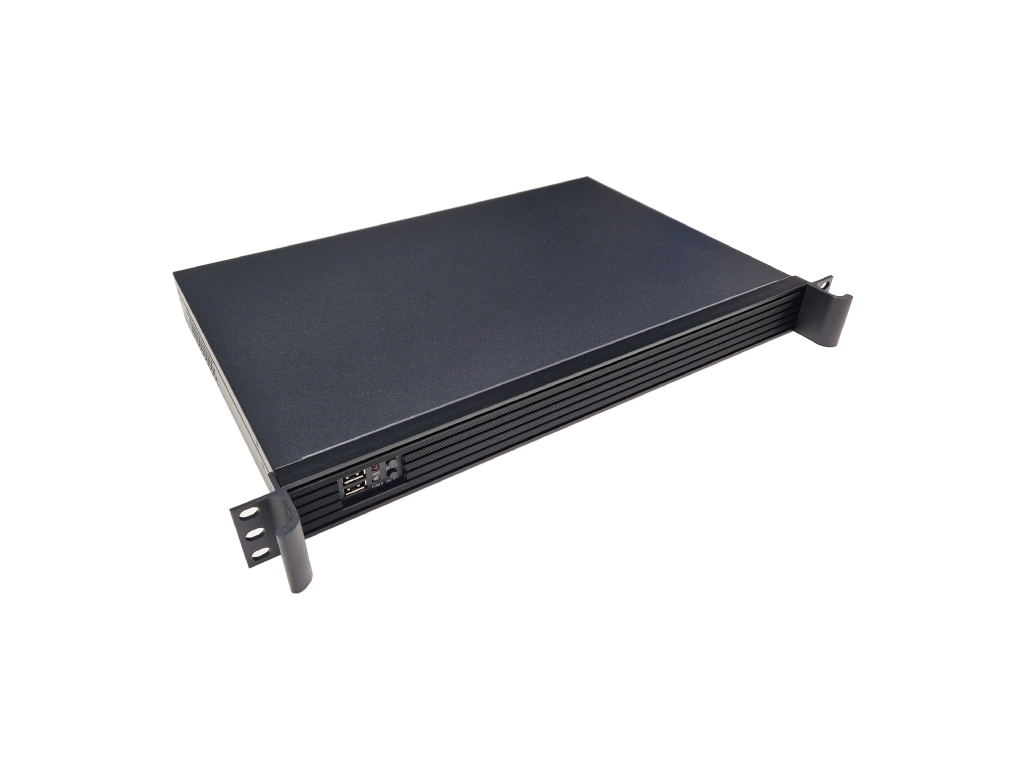

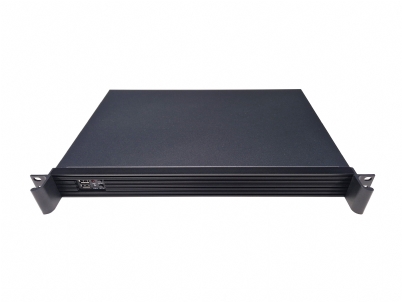

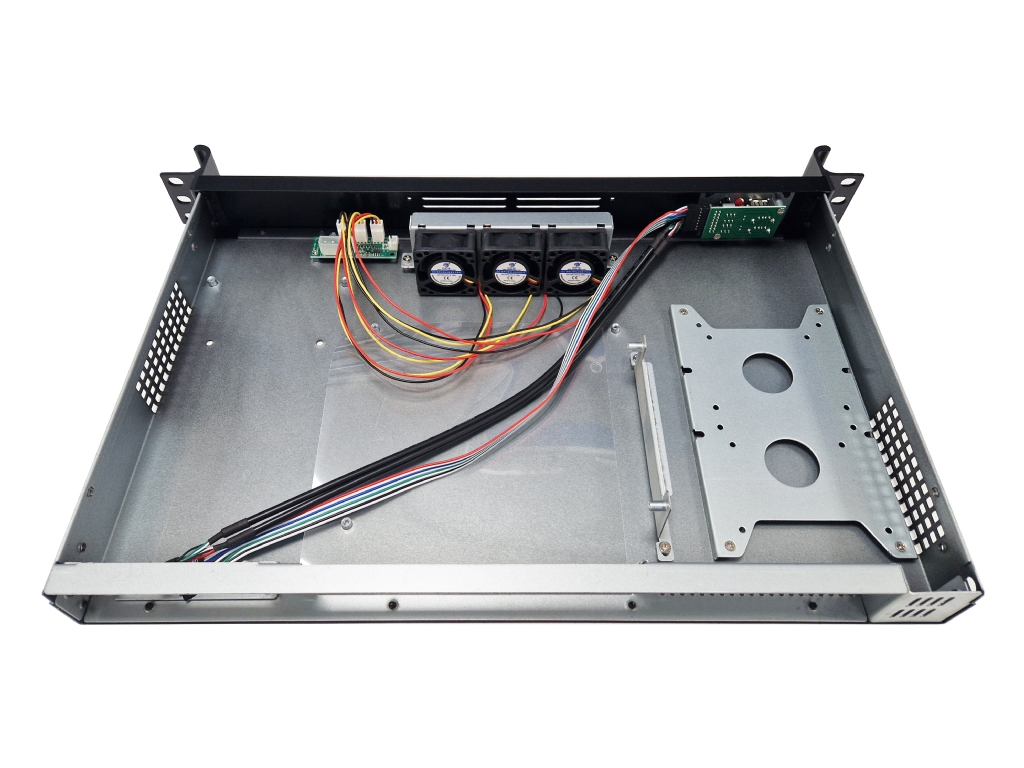

1U Short Depth Chassis Ideal for Wall Rack/Appliance Servers - 280mm Depth
Key Product Features:
- 1U Rackmount Form Factor
- 280 Chassis Depth
- 430 Chassis Width
- 44.4 Chassis Height
- Flex ATX PSU Compatibility

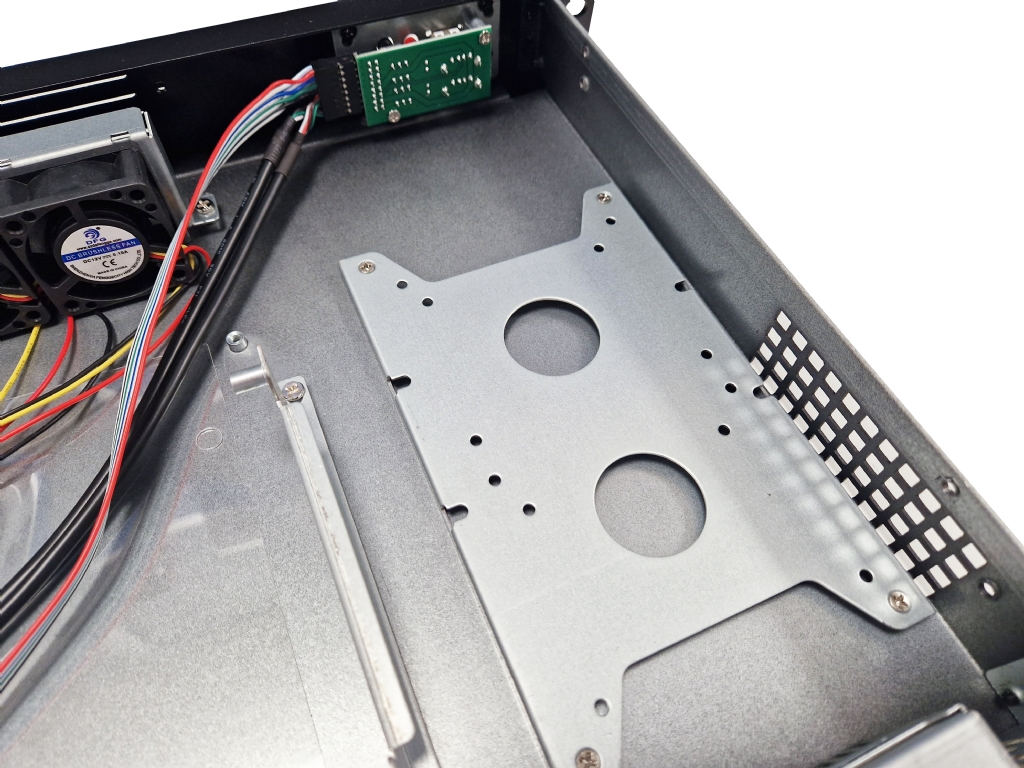

- Mini ITX M/B Form Factor
- 1 Fixed Bays - Internal - 3.5"
- 2 Fixed Bays - Internal - 2.5"
- 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-1280
Buy Now
Server Case
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-1280 from Server Case UK
Call: 01283 576162 | Email: [email protected] | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 1U Rackmount | |
| Motherboard Compatibility | Mini-ITX | |
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 1 (or 2x 2.5") | |
| Internal 2.5" | 2 (or 1x 3.5") | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 1 |
| Low Profile | 0 | |

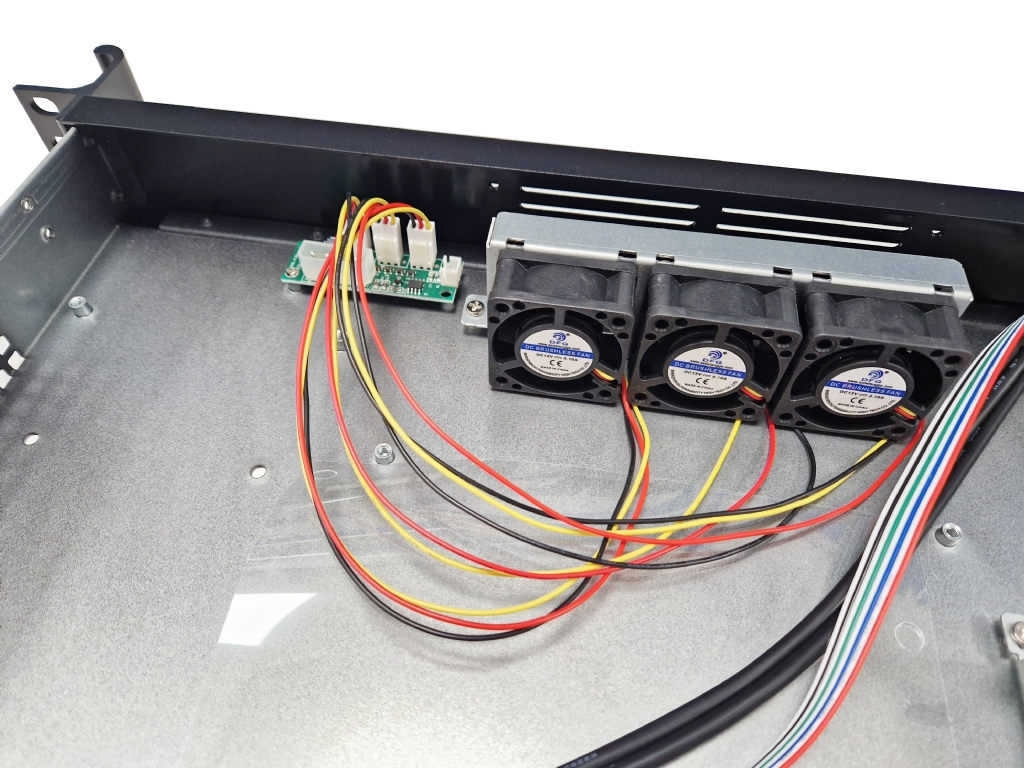

| Cooling | 3 x 40mm 3pin Fans with Molex Power Splitter | |
| Power Supply Form Factor | 1U Flex | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | 430x 44.4x 280 (WxHxD mm) | |
| Weight | 1kg (Approx) | |
| What's Included | ||
|
||
