1U Short Depth Chassis Ideal for Wall Rack/Appliance Servers - 400mm Depth

Key Product Features:

  • 1U Rackmount Form Factor
  • 400mm Chassis Depth
  • 482mm Chassis Width
  • 44.4mm Chassis Height
  • Flex ATX PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 2 Fixed Bays - Internal - 3.5"
  • 4 Fixed Bays - Internal - 2.5"
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-H1-400
1U Short Depth Chassis Ideal for Wall Rack/Appliance Servers - 400mm Depth

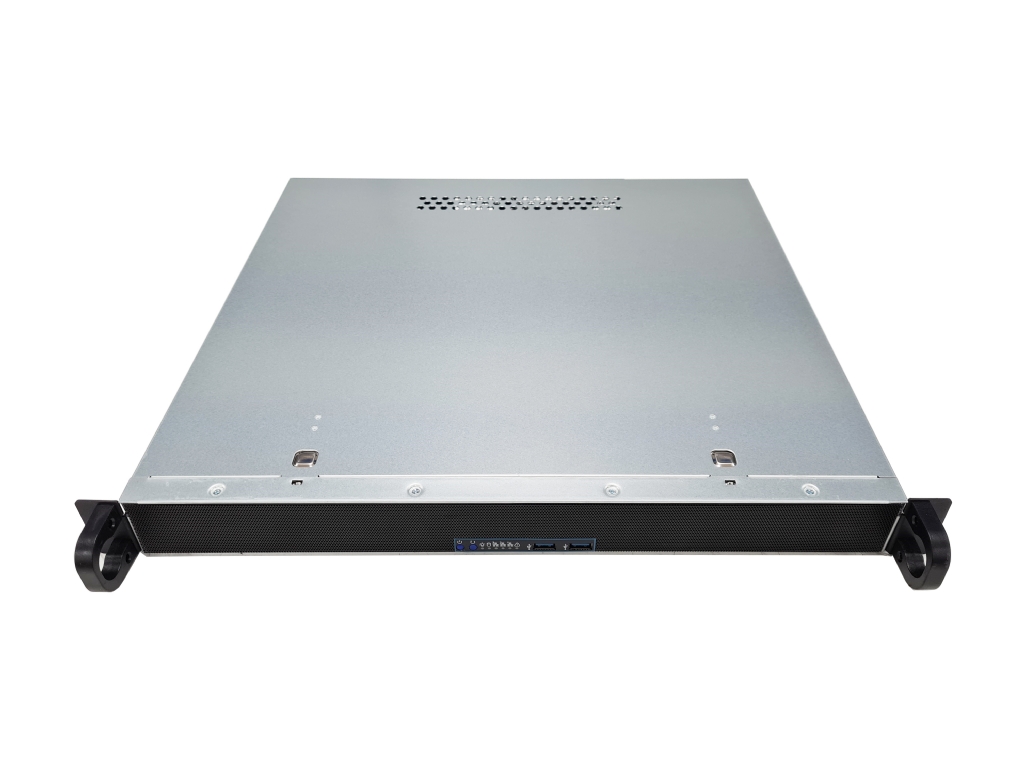

Photo 1

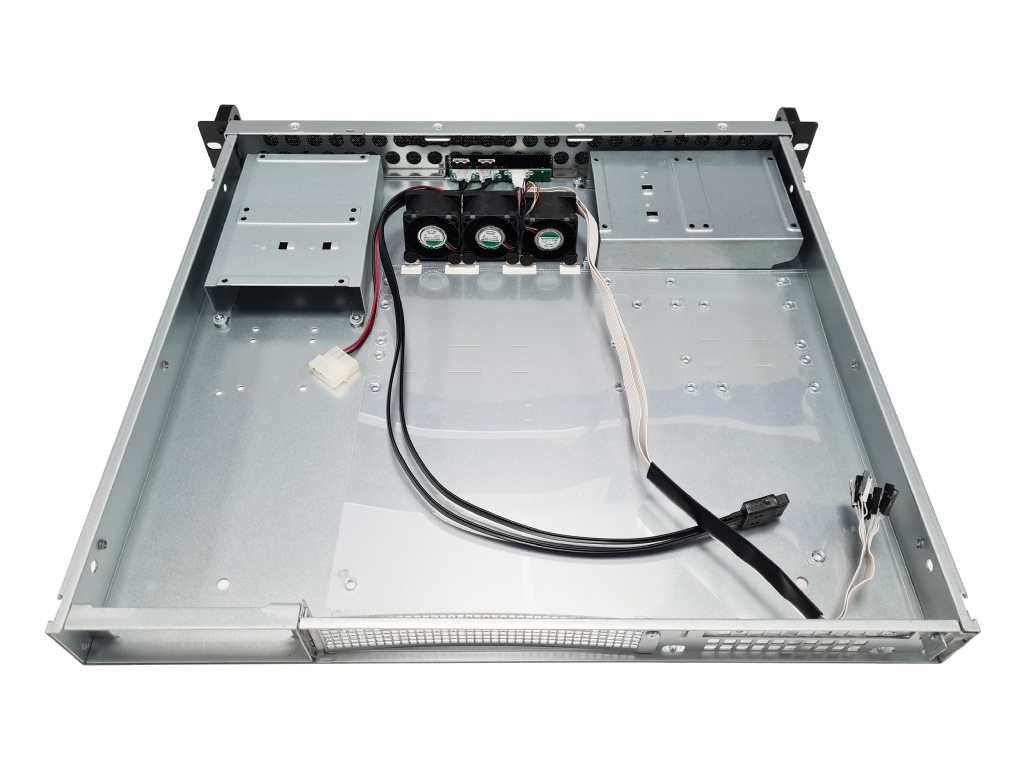

Photo 2

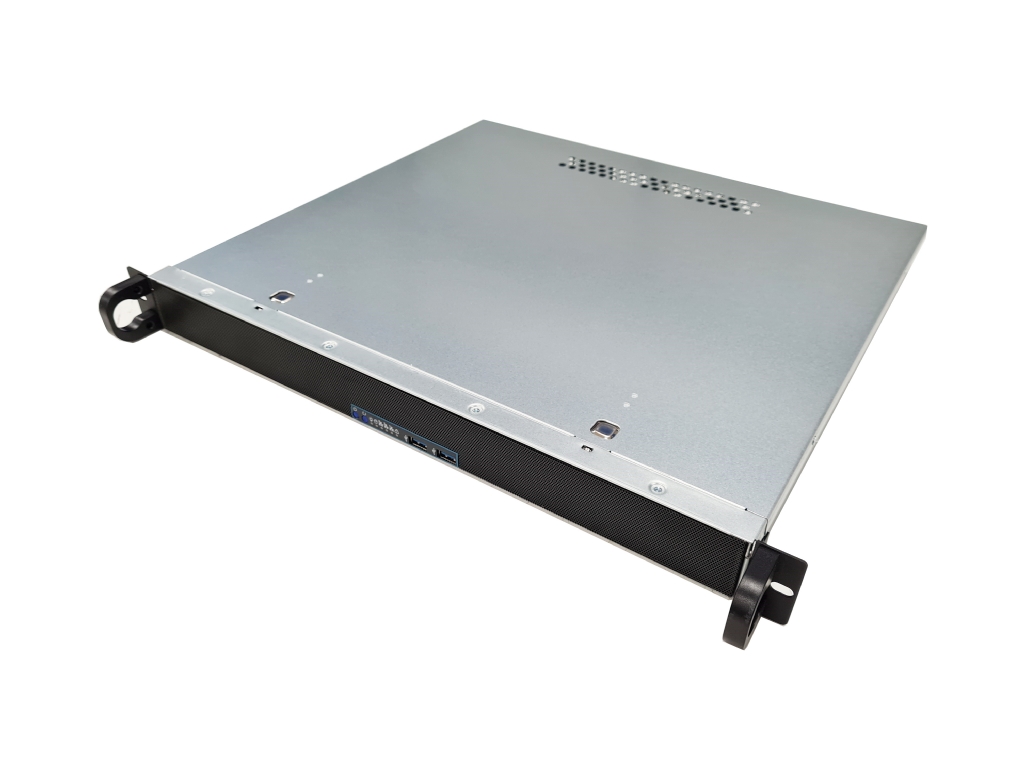

Photo 3

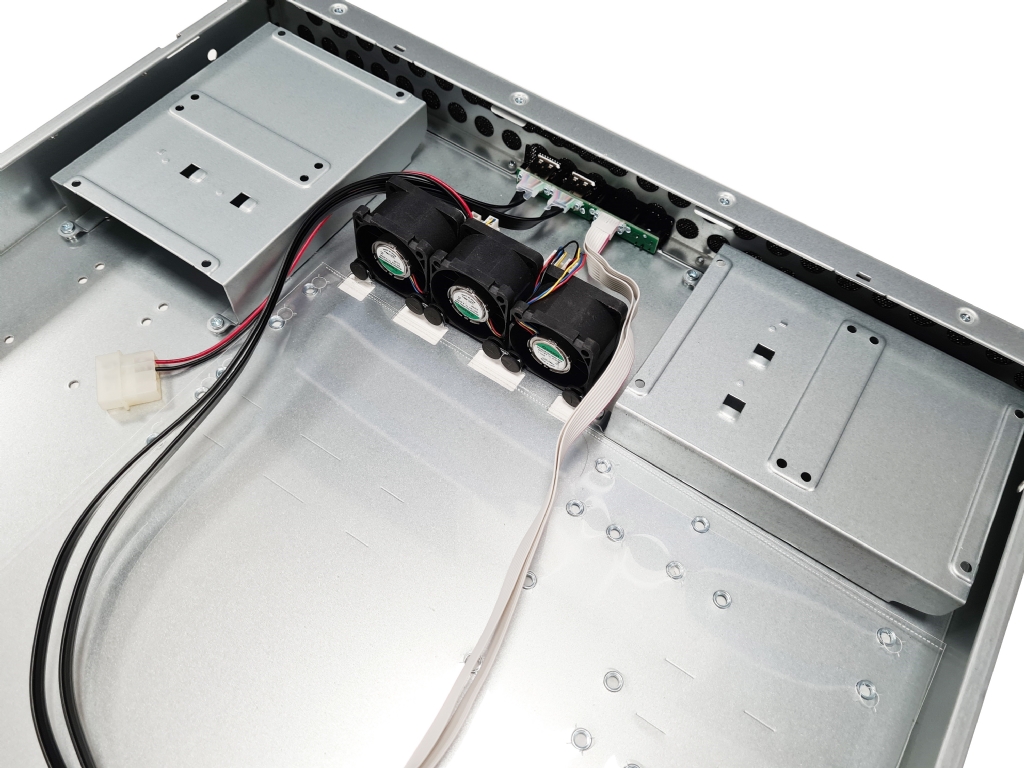

Photo 4

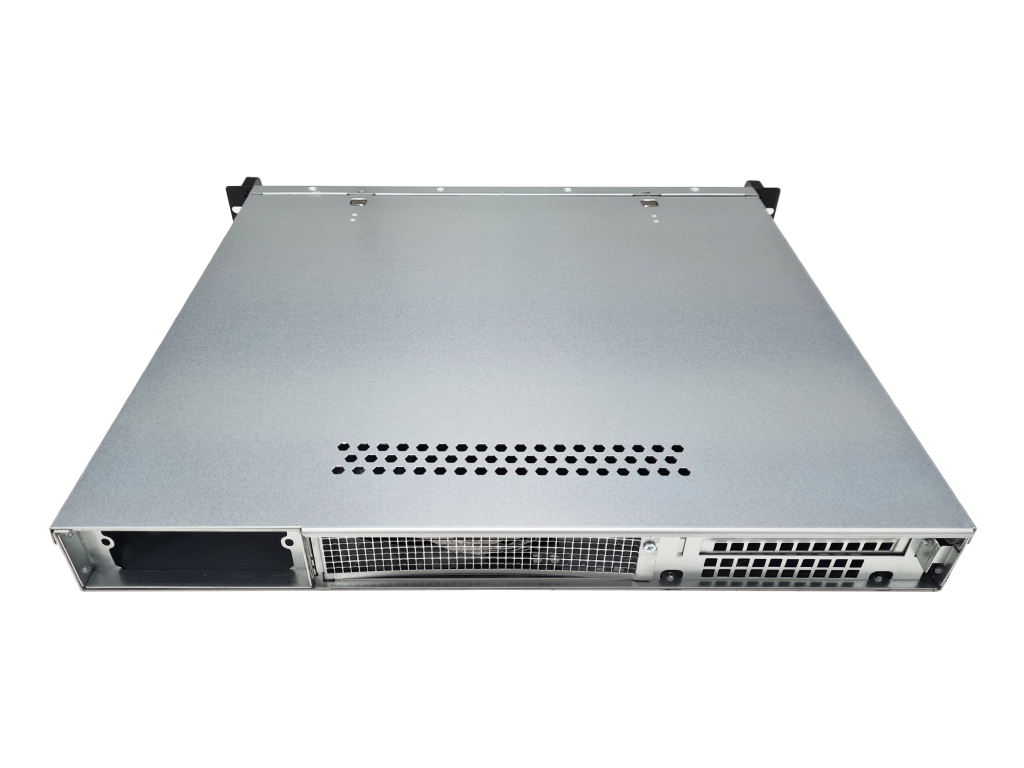

Photo 5

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-H1-400 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 1U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 2
Internal 2.5" 4
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 1
Low Profile 0
Cooling 3 x 40mm PWM 4pin (with Molex Distribution Board)
Power Supply Form Factor 1U Single PSU or 1U Single Flex PSU
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN & HDD LEDs
Colour Silver
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 482mm X 44.4mm X 400mm (WxHxD mm)
Weight 3kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
