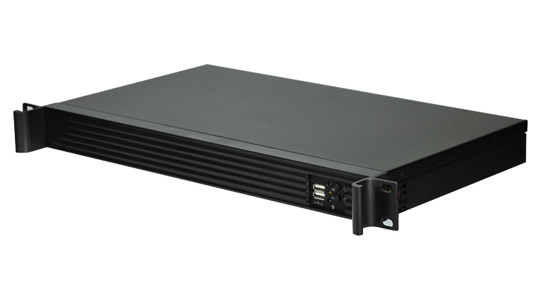

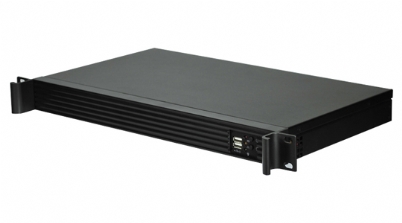

1U Short Depth Chassis Ideal for Wall Rack/Appliance Servers

Key Product Features:

  • 1U Rackmount Form Factor
  • 250mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • Flex ATX PSU Compatibility
  • Mini ITX M/B Form Factor
  • 1 Fixed Bays - Internal - 3.5"
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-1250
1U Short Depth Chassis Ideal for Wall Rack/Appliance Servers
Photo 1
Photo 2
Photo 3
Photo 4

Specifications



Product Overview

This sleek short depth server chassis is perfect in the home or office.  It can be used as a security server, video on demand (VOD) server, web server or business server.

The louvered aluminium front is stylish and ideal for an environment where asthetics are important.



Features:

  • 1U rackmount design,meets EIARS-310C standard
  • 1 x 3.5 " or 2 x 2.5" internal HDD drive bays
  • 2 x 40mm internal fans
  • Supports Mini-ITX (6.7" x 6.7") motherboards
  • 1 x Full Height PCI Expansion Slot
  • 2 x Front USB 2.0 ports
  • Supports 1U Mini Flex or 1U Standard PSU (maximum length 200mm)

Specifications:

Drive Bay: Supports 1 x 3.5" drives or 2 x 2.5" internal hard drives
Cooling Fans: 2 x 40mm fans complete with molex pass through connectors to run from PSU.
Switch: Power ON/OFF x 1, System reset x 1
Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 1
Connector:Two front accessible USB 2.0 ports

PCI Expansion: 1 x Full Height PCI Expansion Slot
Motherboard Compatibility:  Mini-ITX (6.7" x 6.7")

CPU Cooling: Requires 1U Low Profile Active CPU Cooler (See related products)
Power Supply Options: Supports 1U Flex or 1U Standard PSU (maximum length 200mm)
Dimensions ( W x D x H ): 19" x 9.8" x 1.7" (430mm x 250mm x 44mm)
Packing:Double boxes
Weight: 2.75 kg/6 lb (NET) 4.5 kg/ 9.98 lb (GROSS)
Environment Temperature:0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
