1U Standard Chassis 4 x 3.5" Internal HDD - 550mm Deep

Key Product Features:

  • 1U Rackmount Form Factor
  • 550mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • 1U Single PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 4 Fixed Bays - Internal - 3.5"
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-H1-550
1U Standard Chassis 4 x 3.5

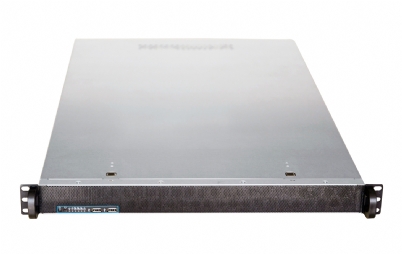

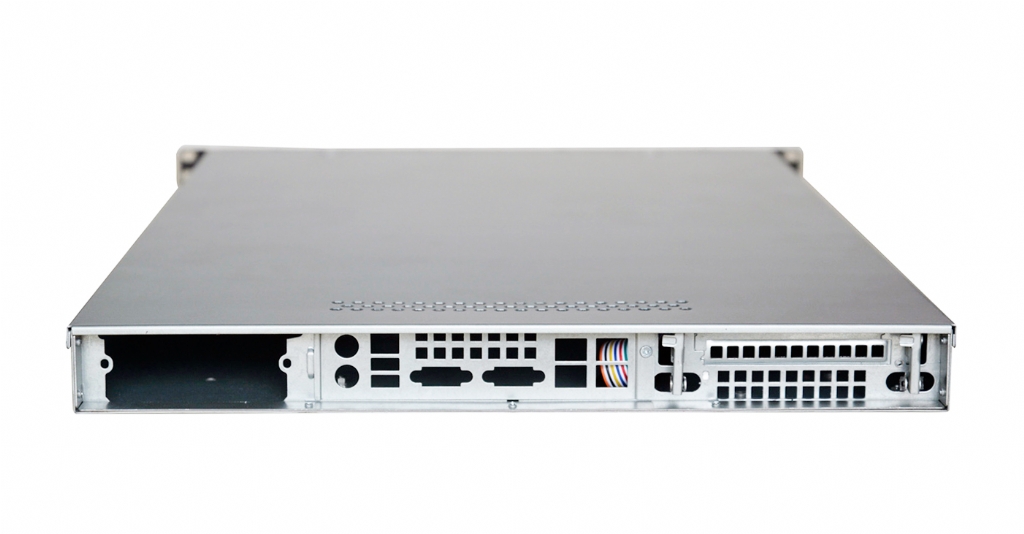

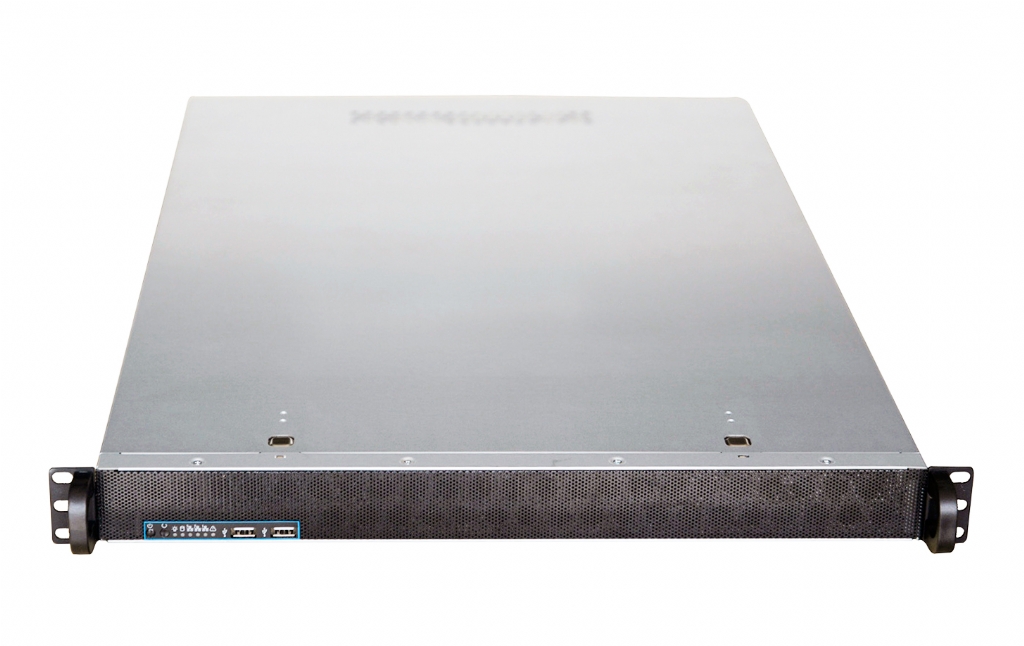

Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-H1-550 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications





Technical Details
Case Form Factor 1U Rackmount - Compatible rail kit is SC-03A-1U-485MM
Motherboard Compatibility Supports, CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7") motherboard
Drive Bays

External 5.25"

0
External 3.5" 0

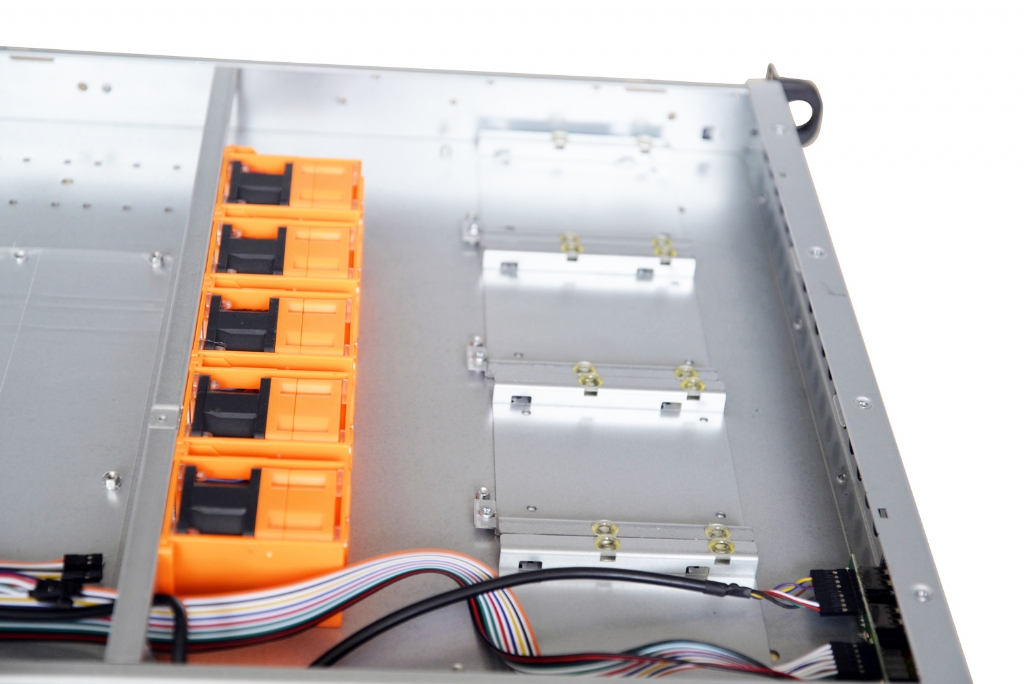

Internal 3.5" 4
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 1
Low Profile 0
Cooling

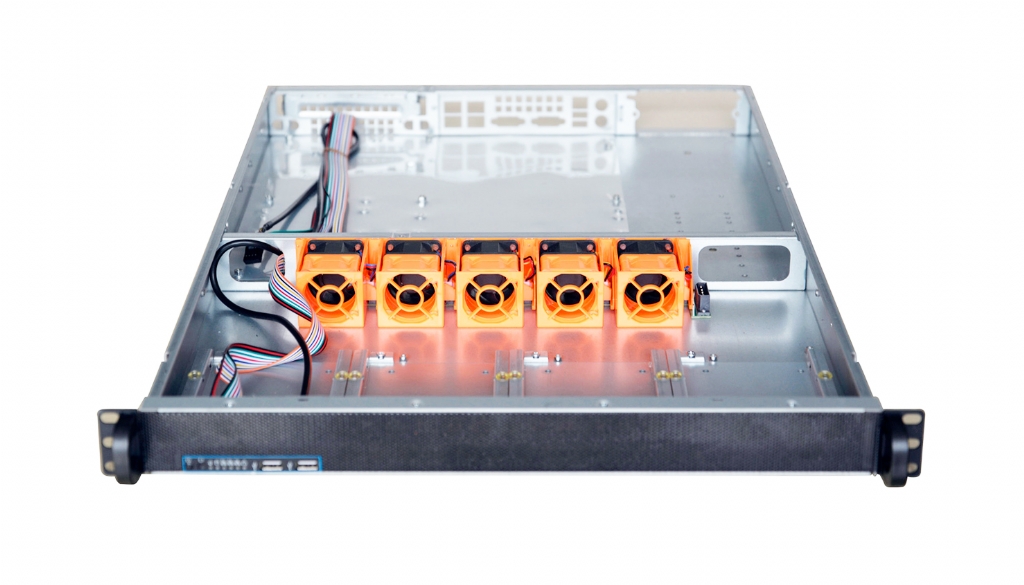

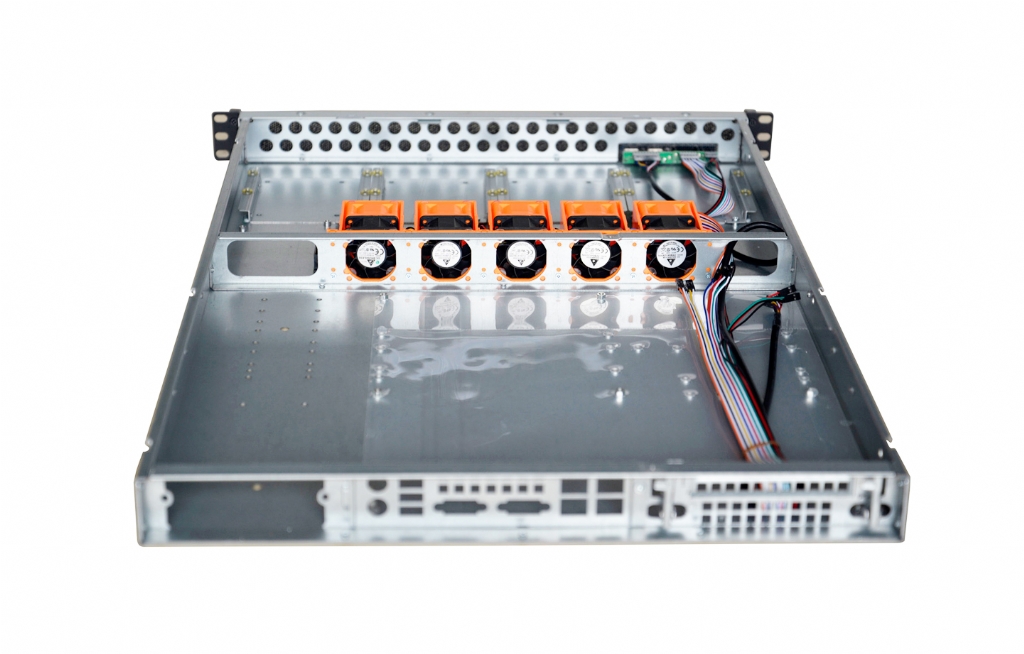

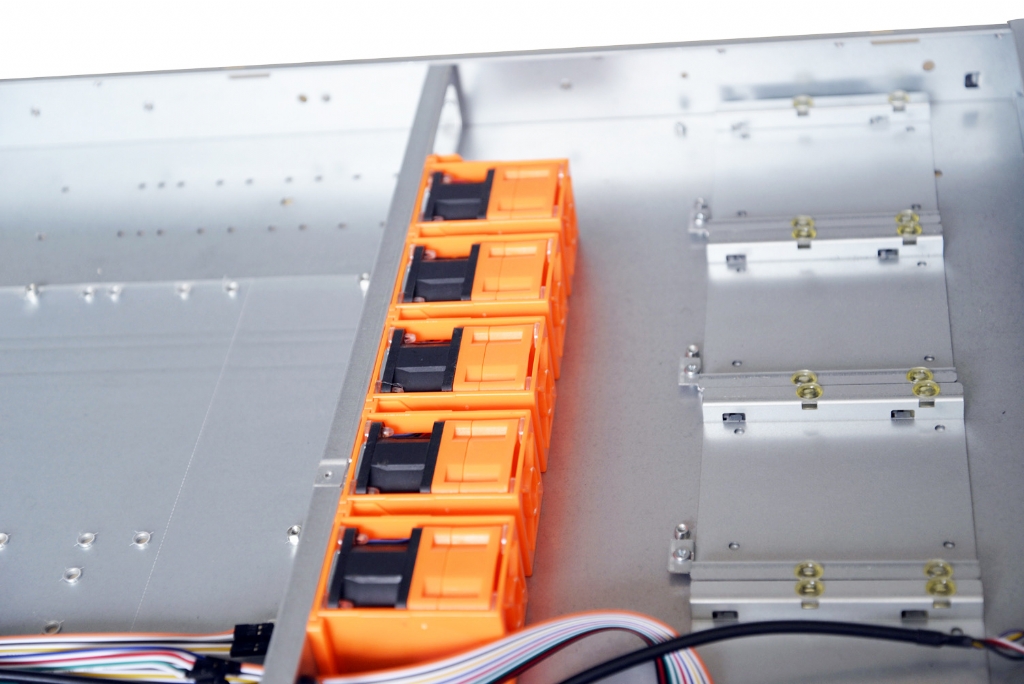

5 x 40mm hot-swap ball bearing fans for better ventilation

Power Supply Form Factor Standard 1U PSU
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material Steel
Dimensions & Weights
Packaging Single Box
Dimensions 550MM(D)* 430MM(W)* 44.5MM(H)
Weight 8.0 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
