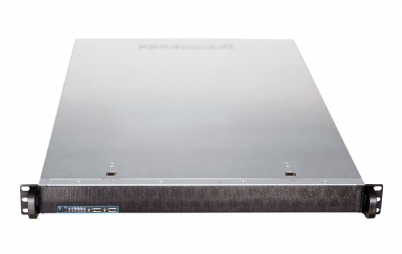

1U Standard Chassis 4 x 3.5" Internal HDD - 650mm Deep

Key Product Features:

  • 1U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • 1U Single PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 4 Fixed Bays - Internal - 3.5"
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-H1-650
1U Standard Chassis 4 x 3.5

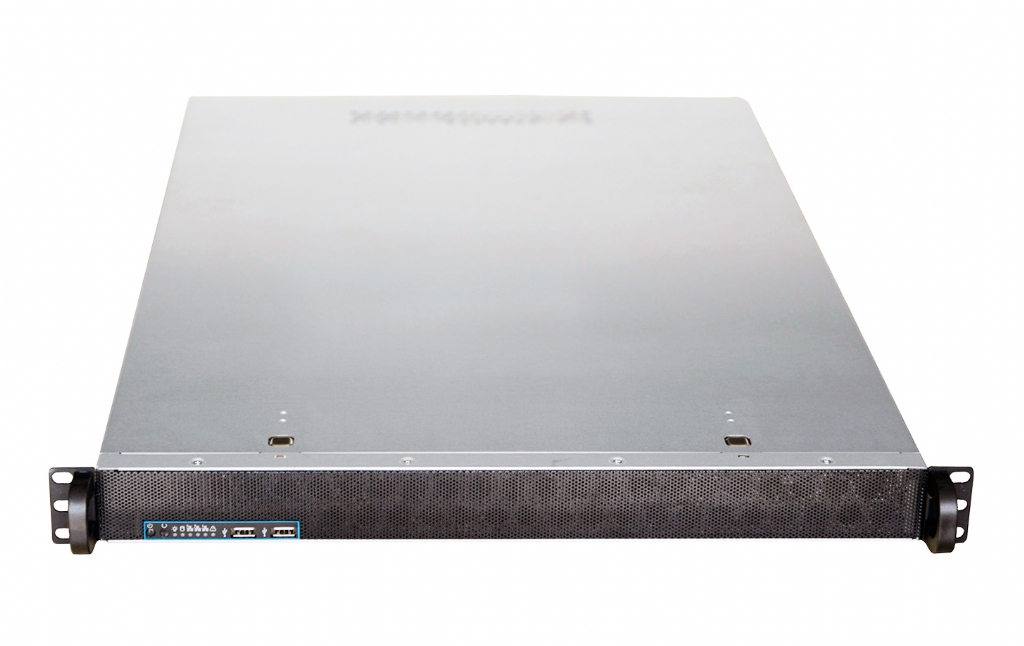

Photo 1

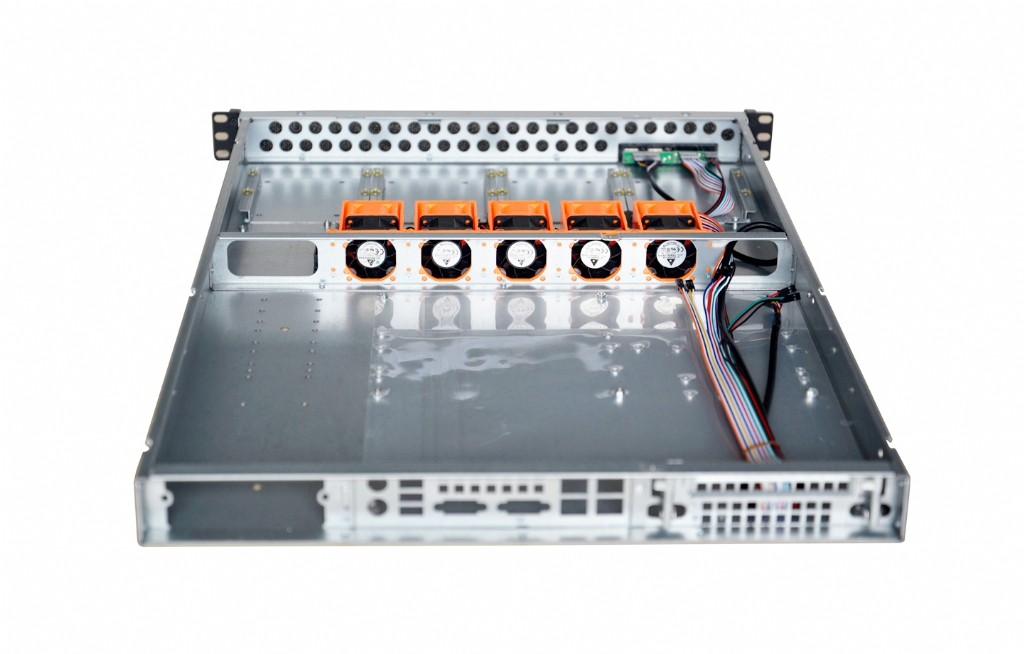

Photo 2

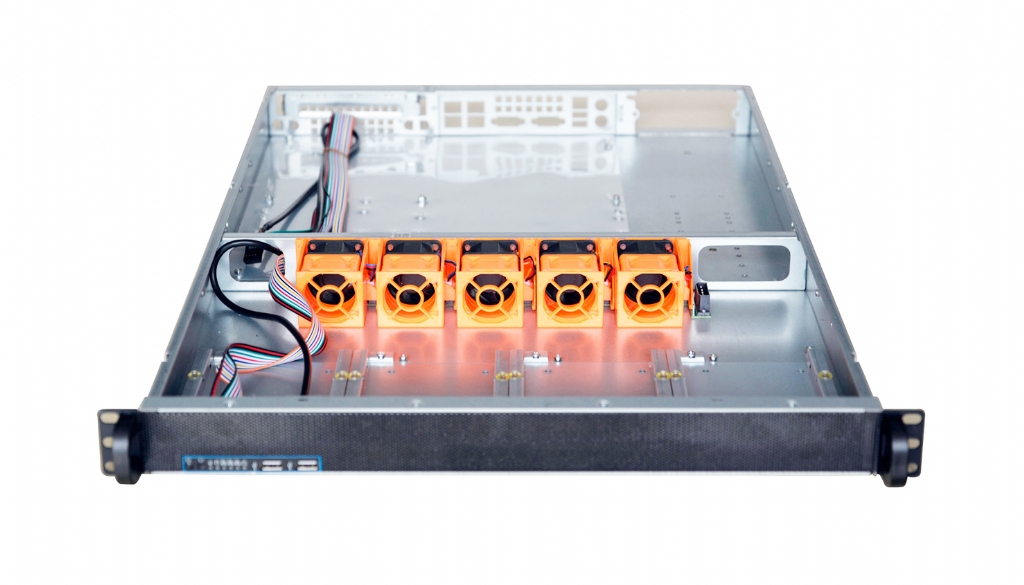

Photo 3

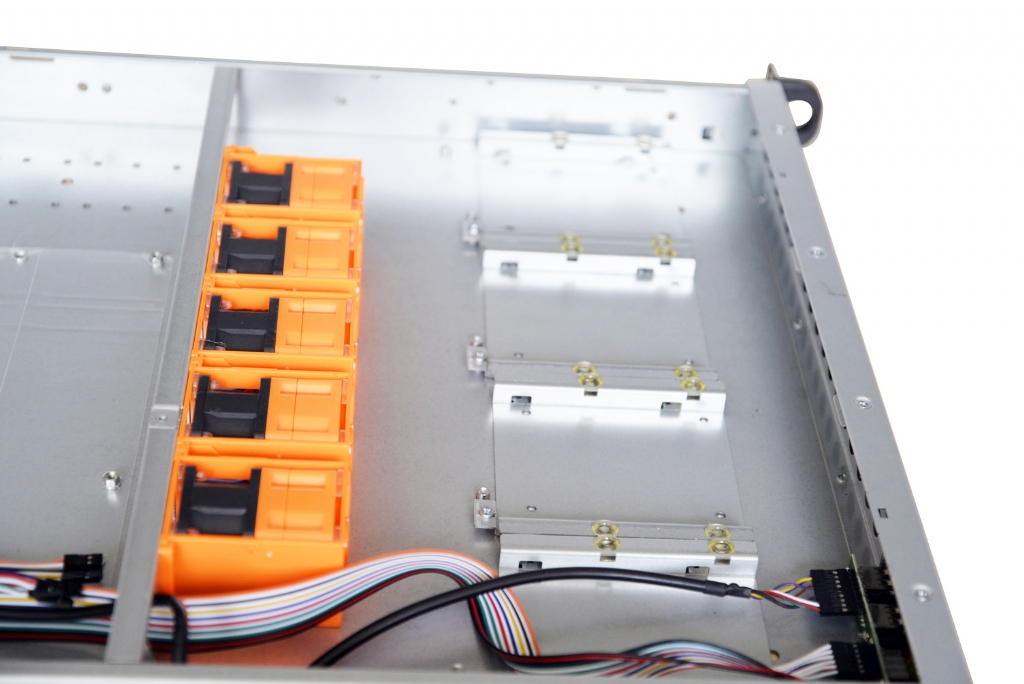

Photo 4

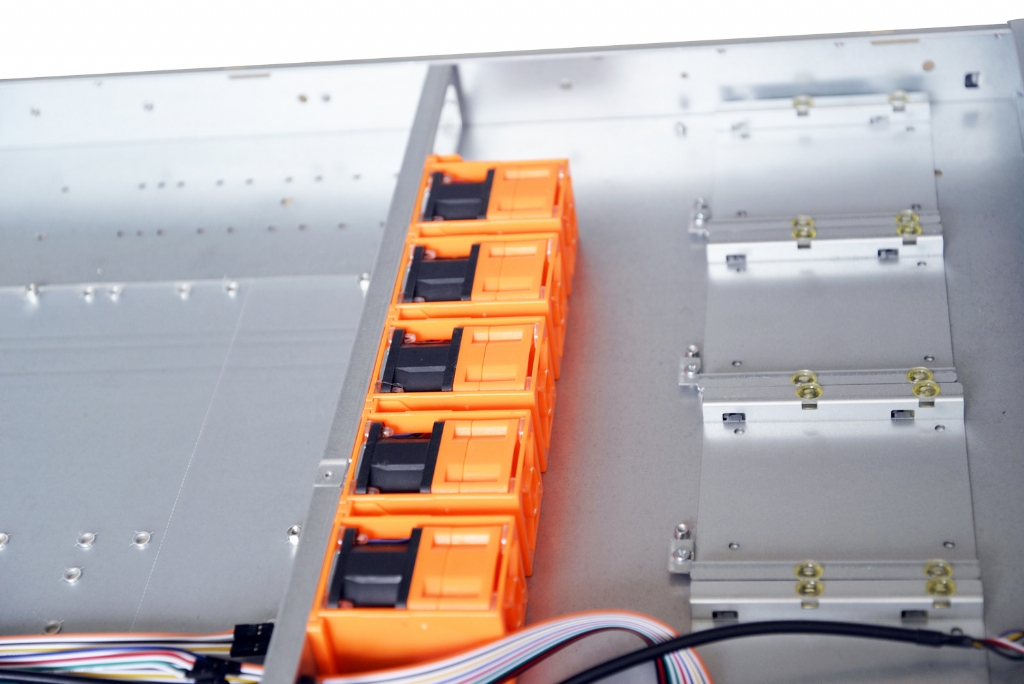

Photo 5

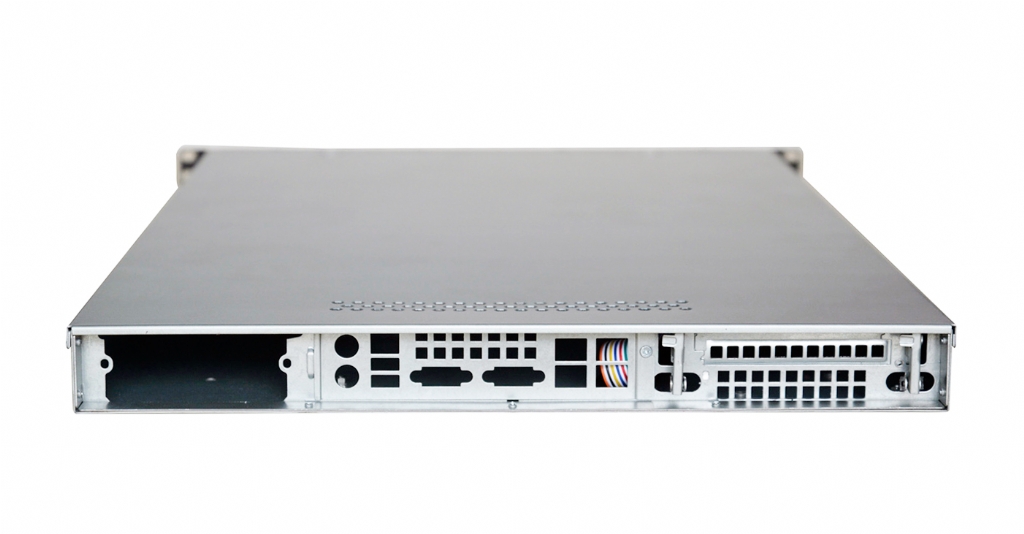

Photo 6

Specifications

Features

  • 4 x 3.5" Internal Fixed Bays
  • Support up to EEB motherboard
  • 5x40mm hot-swap ball bearing fans for better ventilation
  • 2 x Front accessible USB 2.0 ports
  • Smooth border with no sharp edges for easy handling



Specifications

  • Drive Bay: 4 x 3.5" HDD Bays - Easy to remove trays
  • Cooling Fan: 5 x 40mm front fans - Hot-Swap
  • Switch: Power ON/OFF x 1, System reset x 1
  • Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 3
  • Connectors: 2x front accessible USB 2.0 ports
  • Motherboard Compatibility: Supports, EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7") motherboard
  • Expansion: 1 x PCI or PCI-E
  • Power Supply: Standard 1U PSU
  • Dimensions: 650MM(D)* 430MM(W)* 44.5MM(H) x 10Kg
  • Packing: Gross 8.85kg Nett 7.2Kg  carton box :830mm*555mm*110mm( single box)
  • Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
  • Relative Humidity: 5% to 95%,non-condensing
  • Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
  • Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
