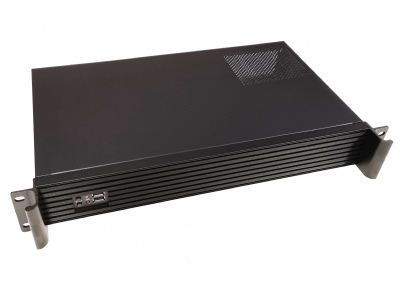

Rack Mountable Server Chassis Case 1.5U 250MM Ultra Short Depth for ITX

Key Product Features:

  • 1U Rackmount Form Factor
  • 250mm Chassis Depth
  • 430mm Chassis Width
  • 66.6mm Chassis Height
  • Standard ATX PSU Compatibility
  • Mini ITX M/B Form Factor
  • 1 Fixed Bays - Internal - 3.5"
  • 7 Fixed Bays - Internal - 2.5"
  • 2 Full Height PCI Expansion Slots
Product Code/SKU: SC-15250
Rack Mountable Server Chassis Case 1.5U 250MM Ultra Short Depth for ITX
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-15250 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Please Note: This chassis is 1.5U in height.

Technical Details
Case Form Factor 1.5U Rackmount
Motherboard Compatibility Mini-ITX
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 1 (or for additional 2x 2.5")
Internal 2.5" 5
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 2
Low Profile 0
Cooling 2x 60mm
Power Supply Form Factor SFX PSU (See Compatible Products below for 300W and 400W SFX PSU Options Compatible)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 430mm Width
66.6mm Height
250mm Depth
Weight 8kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
