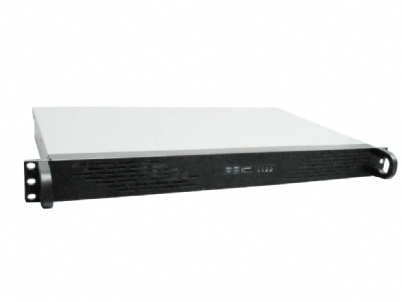

Rack Mountable Server Chassis Case 1U 250MM Ultra Short Depth for ITX

Key Product Features:

  • 1U Rackmount Form Factor
  • 250mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • Flex ATX PSU Compatibility
  • Mini ITX M/B Form Factor
  • 1 Fixed Bays - Internal - 3.5"
  • 2 Fixed Bays - Internal - 2.5"
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-13250
Rack Mountable Server Chassis Case 1U 250MM Ultra Short Depth for ITX
Photo 1
Photo 2
Photo 3

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-13250 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 1U
Motherboard Compatibility

Support ITX (Max 17CM x 17CM) motherboard

Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 1 (Or 2 X 2.5")
Internal 2.5" 2 (Or 1 X 3.5")
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 1
Low Profile 0
Cooling 3 x 40mm
Power Supply Form Factor 1U Flex ATX
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material Steel
Dimensions & Weights
Packaging Single Box
Dimensions 250MM(D)* 430MM(W)* 44.5MM(H)
Weight 4.0 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
