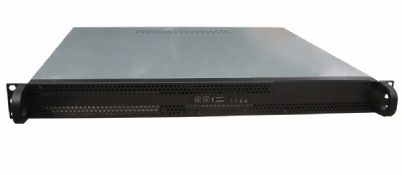

Rack Mountable Server Chassis Case 1U 400MM Short Depth for ATX MB

Key Product Features:

  • 1U Rackmount Form Factor
  • 400mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • Flex ATX PSU Compatibility
  • Standard ATX M/B Form Factor
  • 2 Fixed Bays - Internal - 3.5"
  • 4 Fixed Bays - Internal - 2.5"
  • 1 Slim ODD
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-13400
Rack Mountable Server Chassis Case 1U 400MM Short Depth for ATX MB
Photo 1
Photo 2
Photo 3
Photo 4

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-13400 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 1U Rackmount
Motherboard Compatibility

Supports ATX (Max 12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7") Motherboards.

Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 2
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 1
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 1
Low Profile 0
Cooling

3 x 40mm ball bearing fans for better ventilation

Power Supply Form Factor Flex 1U or short length 1U (maximum 200mm long)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material Steel
Dimensions & Weights
Packaging Single Box
Dimensions 400MM(D)* 430MM(W)* 44.5MM(H)
Weight 6.05 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
