Rack Mountable Server Chassis Case 1U 400MM Short Depth for ITX MB

Key Product Features:

  • 1U Rackmount Form Factor
  • 400mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • Flex ATX PSU Compatibility
  • Mini ITX M/B Form Factor
  • 1 Fixed Bays - External - 5.25"
  • 1 Fixed Bays - Internal - 3.5"
  • 2 Fixed Bays - Internal - 2.5"
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-13400A
Rack Mountable Server Chassis Case 1U 400MM Short Depth for ITX MB

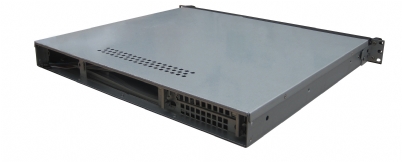

Photo 1

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-13400A from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Features

  • 1 x 3.5" + 1 x full size 5.25" DVD Drive + 2 x 2.5" Drive bays (maximum height 9.5mm)
  • Support ITX (Max 17CM x 17CM) motherboard
  • 3x40mm ball bearing fans for better ventilation (optional 2 additional 40mm fans)
  • 2 x Front accessible USB 2.0 port
  • Smooth border with no sharp edges for easy handling
  • Can convert the 3.5" HDD to 2 x 2.5" by using SC-02A



Specifications

  • Drive Bay: 1 x 3.5" + 1 x full size 5.25" DVD Drive (170mm depth)  Can convert the 3.5" HDD to 2 x 2.5" by using SC-02A
  • The 5.25" drive bay has a caddy fitted which accepts up to 4 x 2.5" HDD / SSD if no optical device is fitted.
  • Additional 2 x 2.5" HDD / SSD can be fitted on top of the 3.5" drive caddy (maximum drive thickness 9.5mm)
  • Maximum number of 2.5" drives is 8. (2 have maximum thickness 9.5mm) if no optical drive or 3.5" drive is fitted.
  • Cooling Fan: 3 x 40mm front fans
  • An additional 2 x 40mm fans can be installed onto the front 5.25" cover plate if no optical drive is required.  These fans will directly cool any 2.5" HDD installed in the bay.
  • Switch: Power ON/OFF x 1, System reset x 1
  • Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 3
  • Connector: 2 x front accessible USB 2.0 ports
  • Motherboard Compatibility: Supports, Mini ITX (6.7" X 6.7")
  • Expansion: 1 x PCI or PCI-E
  • Power Supply: Flex 1U PSU  or short length 1U (maximum 200mm long)
  • Dimensions: 400MM(D)* 430MM(W)* 44.5MM(H)
  • Packing: Carton box :580mm*560mm*115mm( single box)
  • Weight: 4.50Kg Net/ 6.30Kg Gross
  • Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
  • Relative Humidity: 5% to 95%,non-condensing
  • Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
  • Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
