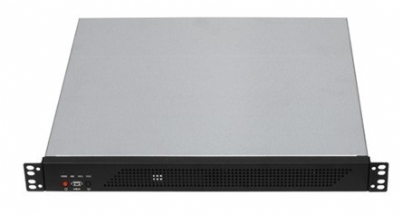

Rack Mountable Server Chassis Case 1U 420MM Short Depth for full size ATX MB

Key Product Features:

  • 1U Rackmount Form Factor
  • 420mm Chassis Depth
  • 430mm Chassis Width
  • 47mm Chassis Height
  • 1U Single PSU Compatibility
  • Standard ATX M/B Form Factor
  • 2 Fixed Bays - Internal - 3.5"
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-1420
Rack Mountable Server Chassis Case 1U 420MM Short Depth for full size ATX MB
Photo 1
Photo 2
Photo 3
Photo 4

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-1420 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk


Technical Details
Case Form Factor 1U Rackmount
Motherboard Compatibility ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7")
Drive Bays

External 5.25"

External 3.5" 0
Internal 3.5" 2 (If 2.5" are not used)
Internal 2.5" 2 (If 3.5" are not used)
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 1
Low Profile 0
Cooling 3x40mm ball bearing fans
Power Supply Form Factor Standard 1U PSU (maximum length 220mm) or 1U Flex PSU
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 1
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material Steel
Dimensions & Weights
Packaging Single Box
Dimensions 420MM(D)* 430MM(W)* 47MM(H)
Weight 5.30 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
