2U ATX Server Chassis - High Density Storage

Key Product Features:

  • 2U Rackmount Form Factor
  • 530mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 1 Fixed Bays - External - 5.25"
  • 1 Fixed Bays - External - 3.5"
  • 3 Fixed Bays - Internal - 3.5"
  • 3 Full Height PCI Expansion Slots
Product Code/SKU: SC-25302

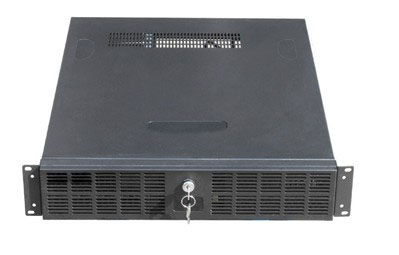

2U ATX Server Chassis - High Density Storage
Photo 1
Photo 2
Photo 3
Photo 4

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-25302 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

2U  ATX Server Chassis - Medium Density Storage Server with 3 x 3.5" +1 x FDD + 1 x 5.25"

Features:

  • 2U rackmount design,meets EIARS-310C standard.
  • 1 x 5.25" drive bay, 3 x 3.5 " Internal drive bays, 1 x 3.5" External FDD bay
  • Supports CEB (12" x 10"), ATX (12" x 9.6"), Micro-ATX (9.6" X 9.6") and Mini-ITX (6.7" X 6.7") motherboards
  • 5x80mm fans for better ventilation
  • Front accessible USB port
  • Smooth border prevent lacerating your skin
  • Install SC-0525 in 5.25" bay to add up to 4 x 2.5" internal bays with 2 x 40mm built in fans
  • Install SC-H250 in 5.25" bay to add up to 4 x 2.5" hot swap drives
  • Lockable full width door.

Specifications:

Drive Bay: Supports Three 3.5" drives, one 5.25"drive and one 3.5" External Drive
Cooling Fans: Centre fan wall incorporates 4 x 80mm fans plus 1 x 80mm rear exhaust fan
Switch: Power ON/OFF x 1, System reset x 1
Indicator:Power ON/OFF x 1, HDD x 1, LAN x 1
Connector:One front accessible USB 2.0 port
Motherboard Compatibility: Support CEB (12" x 10"), ATX (12" x 9.6"), Micro-ATX (9.6" X 9.6") and Mini-ITX (6.7" X 6.7") motherboard
Power Supply Options: Standard ATX power supply
Dimensions ( W x D x H ): 20.9" x 16.9" x 3.46" (530mm x 430mm x 88mm) Fits in 19" rack cabinet
Weight: 9 kg/20 lb (NET) 12 kg/26 lb (GROSS)
Environment Temperature:0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
