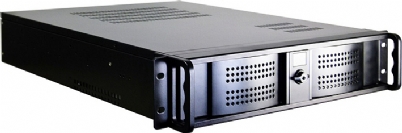

2U ATX Standard Chassis - Full Height PCI Card Support

Key Product Features:

  • 2U Rackmount Form Factor
  • 535mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 1 Fixed Bays - External - 5.25"
  • 1 Fixed Bays - External - 3.5"
  • 6 Fixed Bays - Internal - 3.5"
  • 2 Full Height PCI Expansion Slots
  • 2 Low Profile PCI Expansion Slots
Product Code/SKU: SC-21535A
2U ATX Standard Chassis - Full Height PCI Card Support
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-21535A from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications



Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays

External 5.25"

1
External 3.5" 0
Internal 3.5" 6
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 2 slots (Riser)
Low Profile 0
Cooling 1 x 80mm Rear Fan
Power Supply Form Factor ATX
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 1
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions (WxHxD mm) 430mm x 88mm x 535mm
Weight 10.35 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
