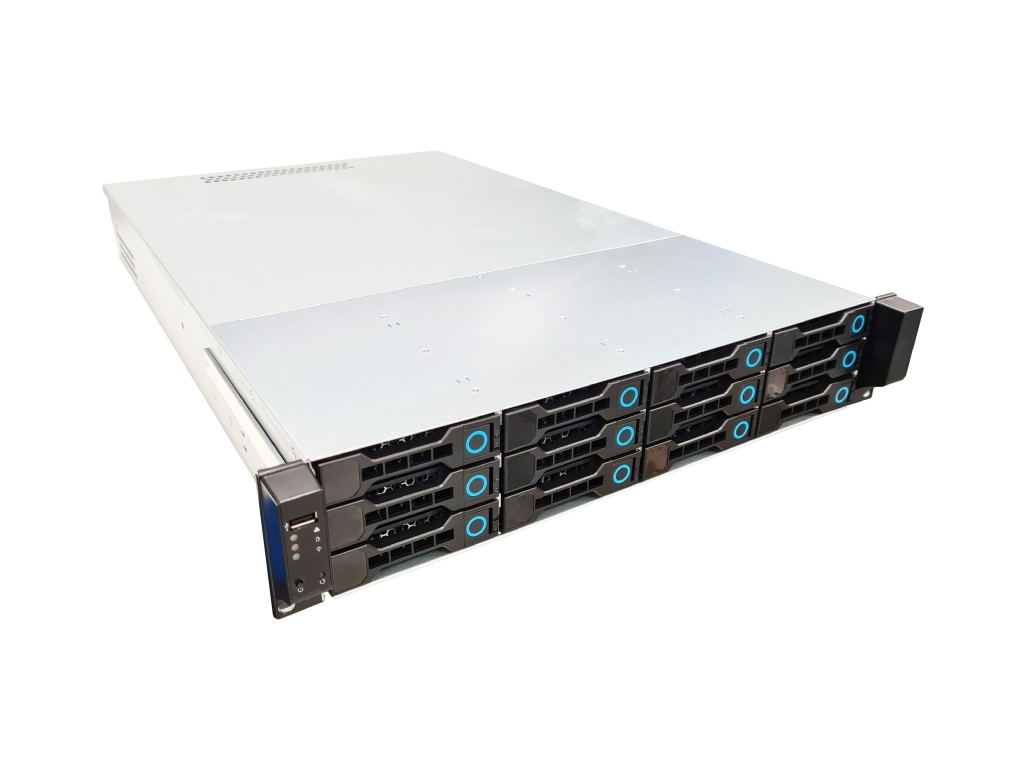

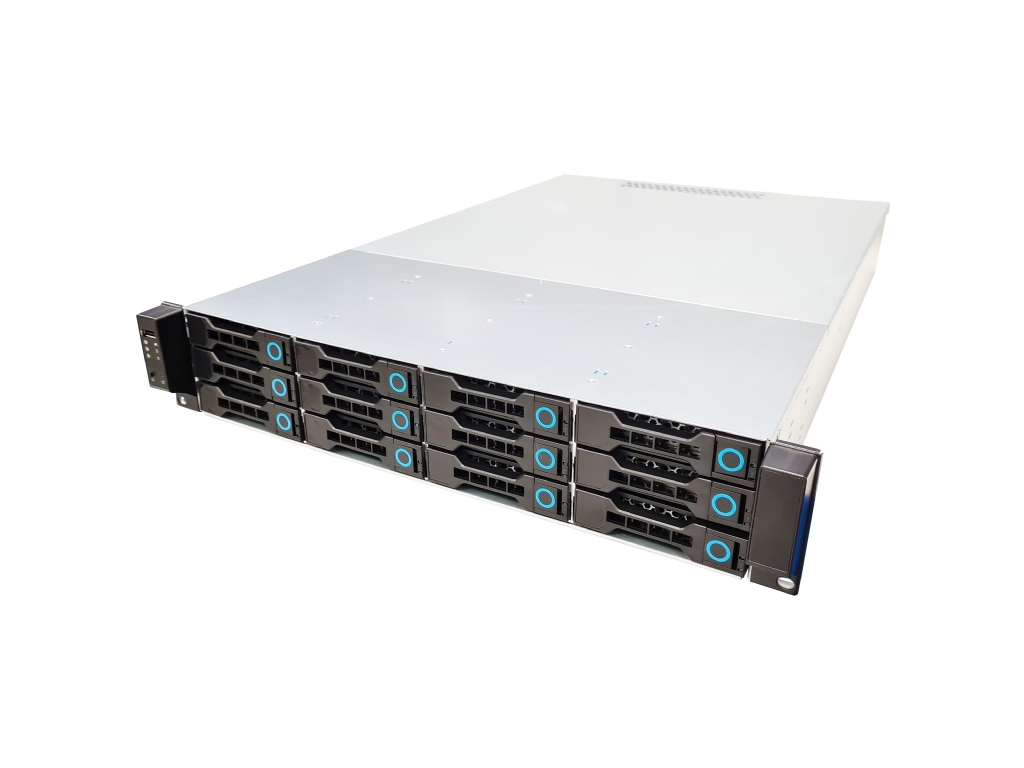

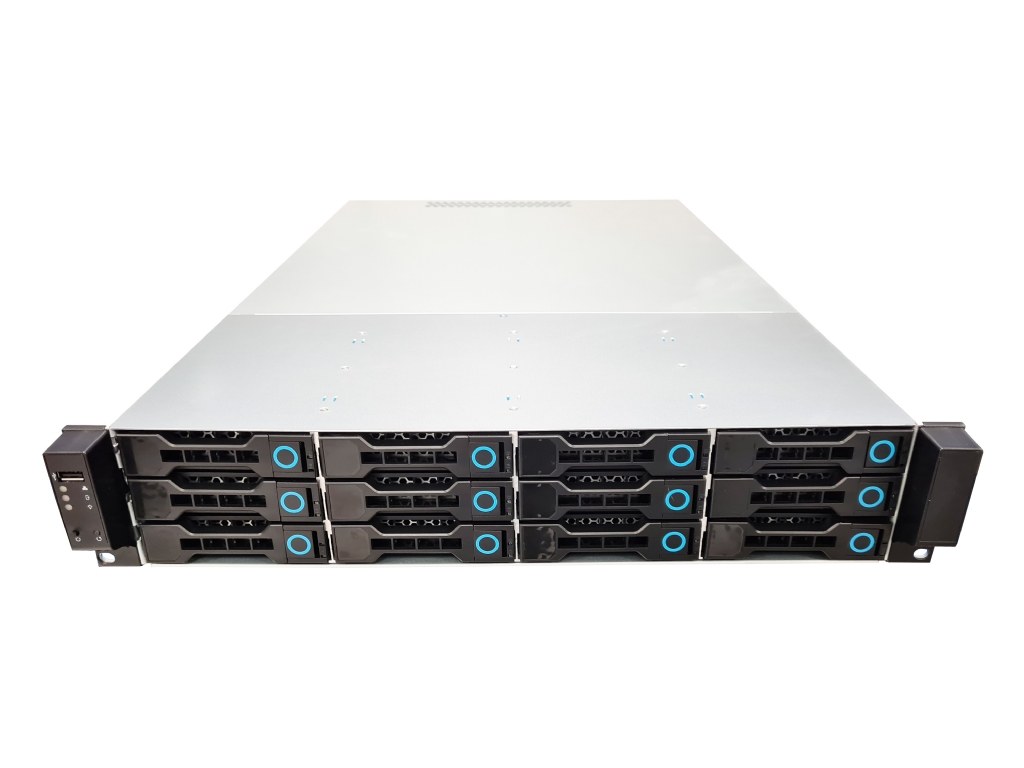

2U Server Case w/ 12x 3.5" Hot-Swappable SATA/SAS Drive Bays, 12G HD Mini SAS

Key Product Features:

  • 2U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • 2U Single PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 1 Fixed Bays - Internal - 2.5"
  • 12 Hot-Swap Bays - 3.5"
  • 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-2312
2U Server Case w/ 12x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-2312 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility

Supports EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7") motherboard

Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 1
Hotswap 3.5" 12
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0

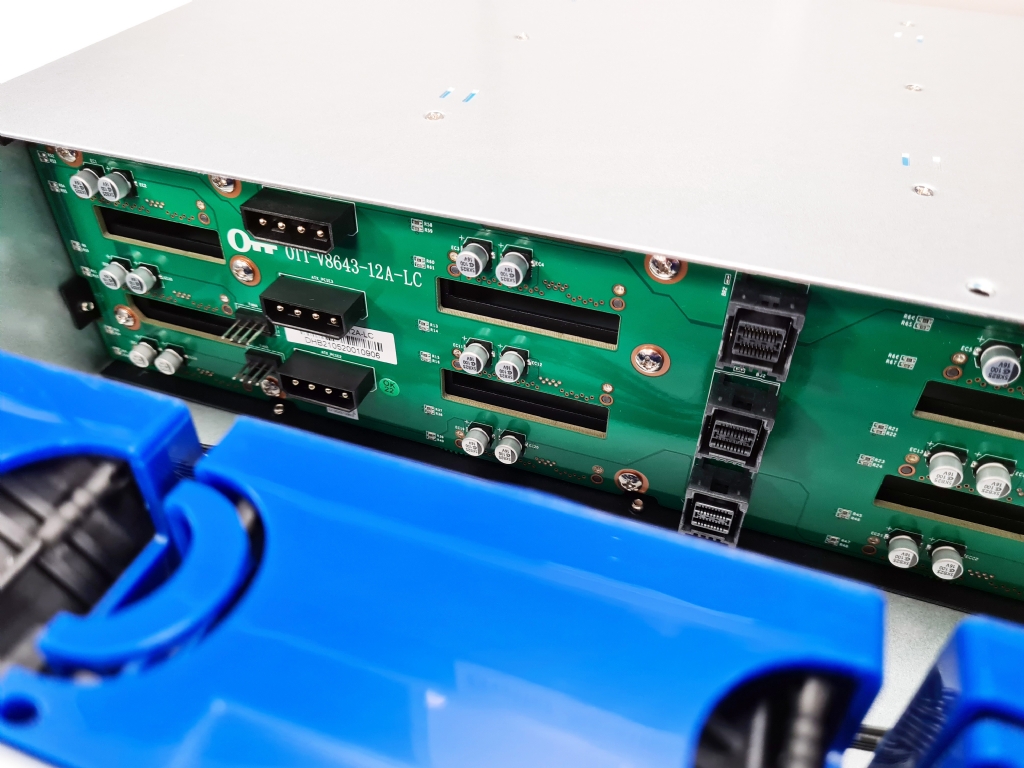

Hot-Swap Backplane 12x SATA/SAS Hot-Swap 12Gbps with 3x HD MiniSAS (SFF-8643) Connectors
Expansion Slots Full Height 0
Low Profile 7

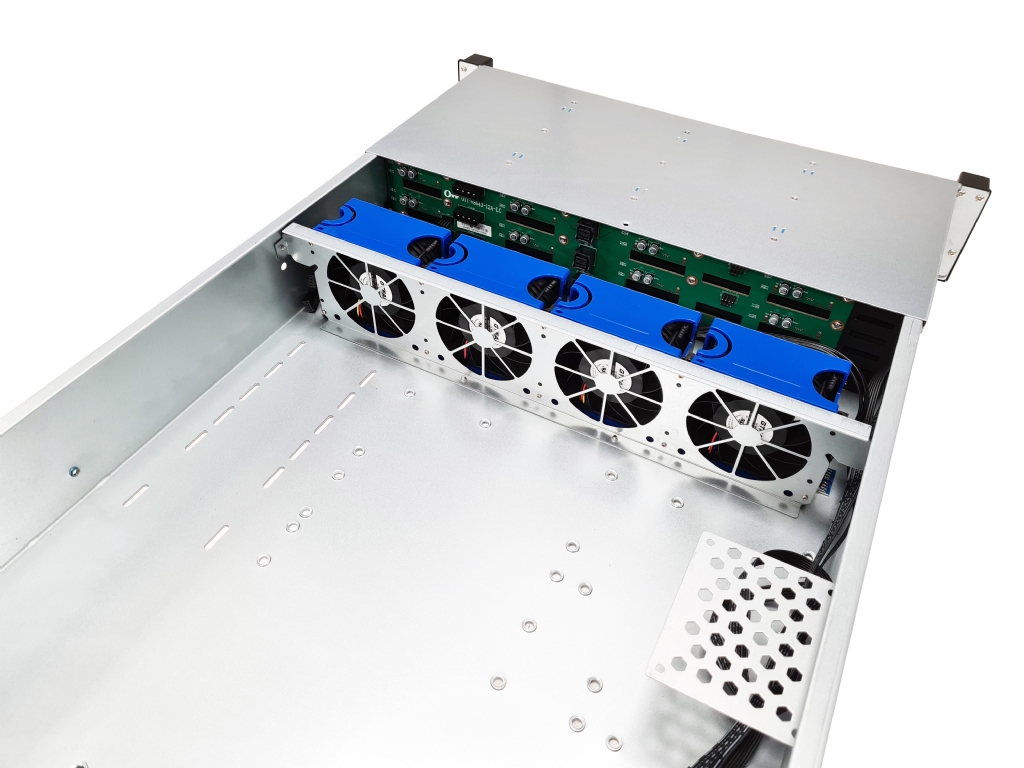

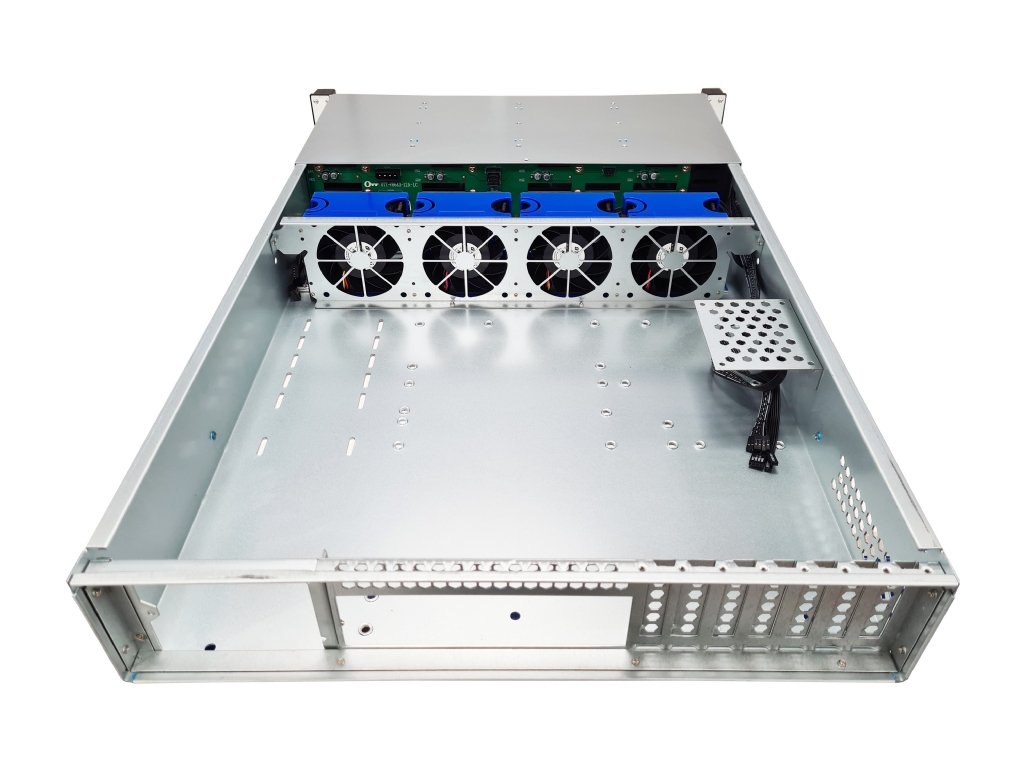

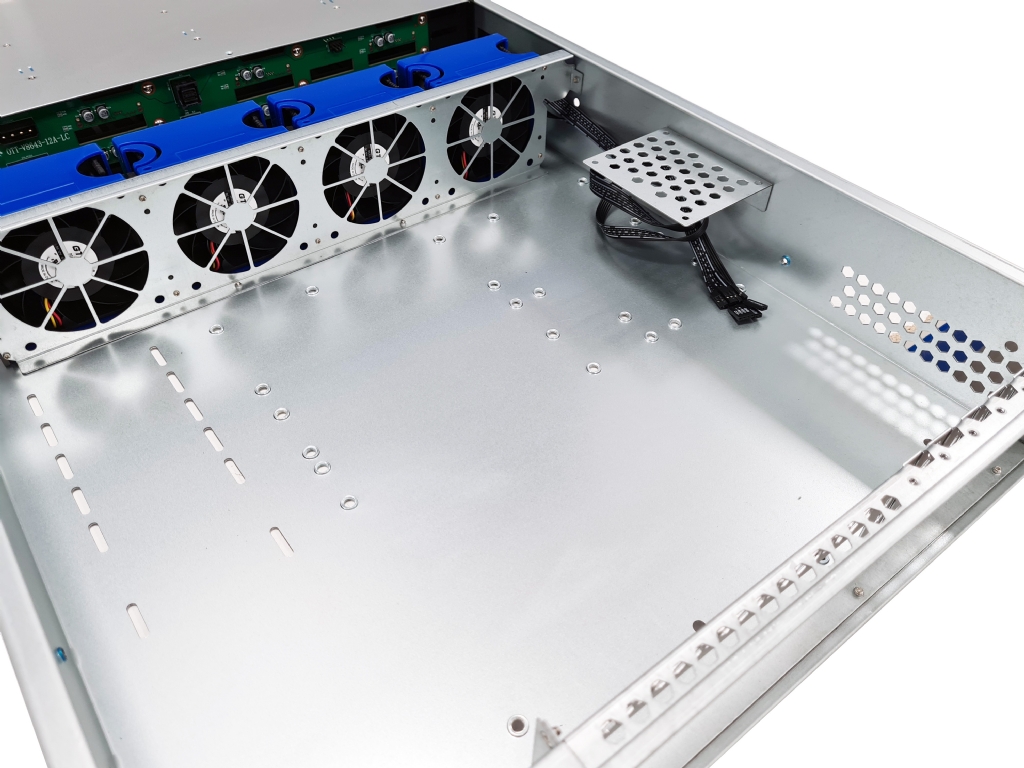

Cooling 4x 80mm Hot-Swap High CFM PWM Fans
Power Supply Form Factor Single 2U PSU
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 1
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 25.5" x 3.5" (483mm x 650mm x 88mm)
Weight 13.6 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
