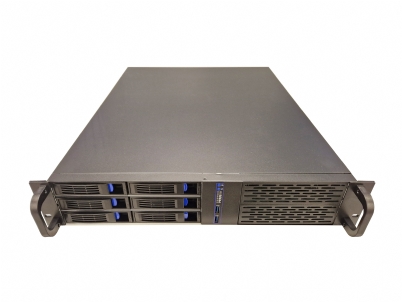

2U Server Case w/ 6x 3.5" Hot-Swappable SATA/SAS Drive Bays + 2 x 5.25" 550mm Deep Black

Key Product Features:

Product Code/SKU: SC-2306B-550B
2U Server Case w/ 6x 3.5

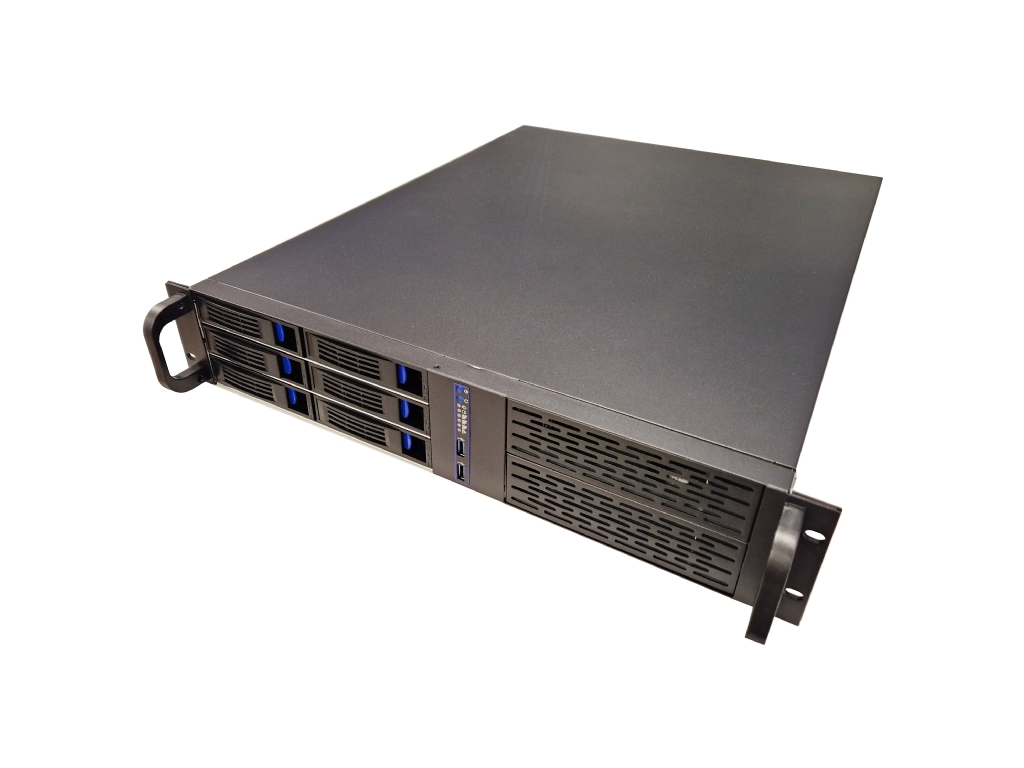

Photo 1

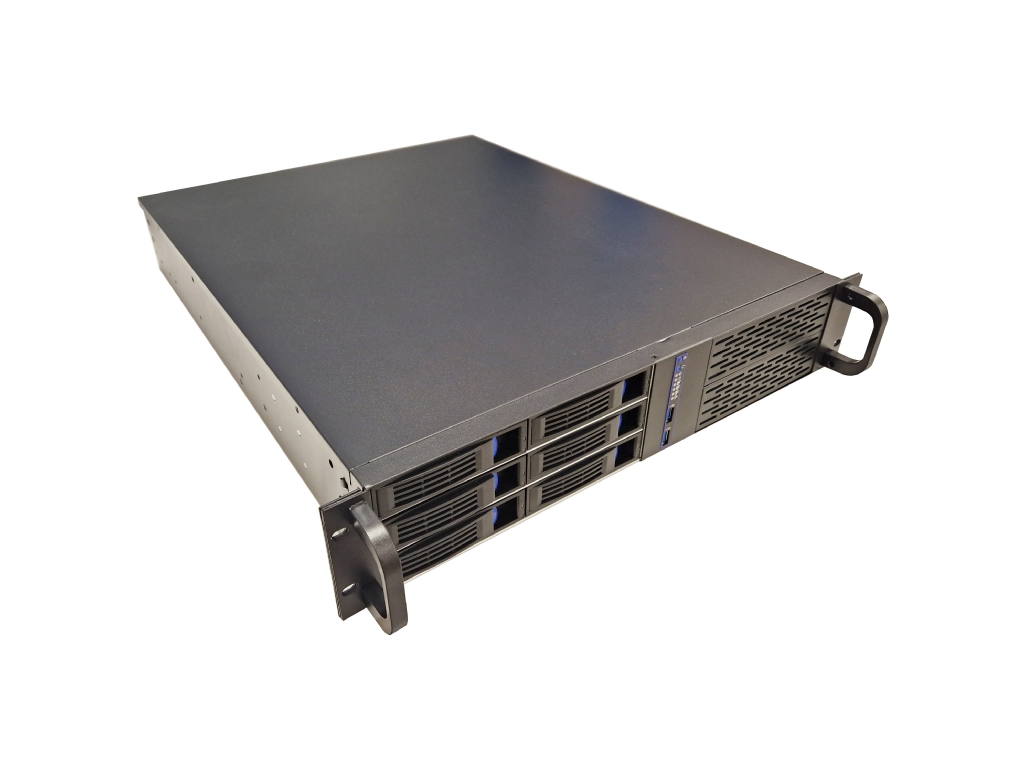

Photo 2

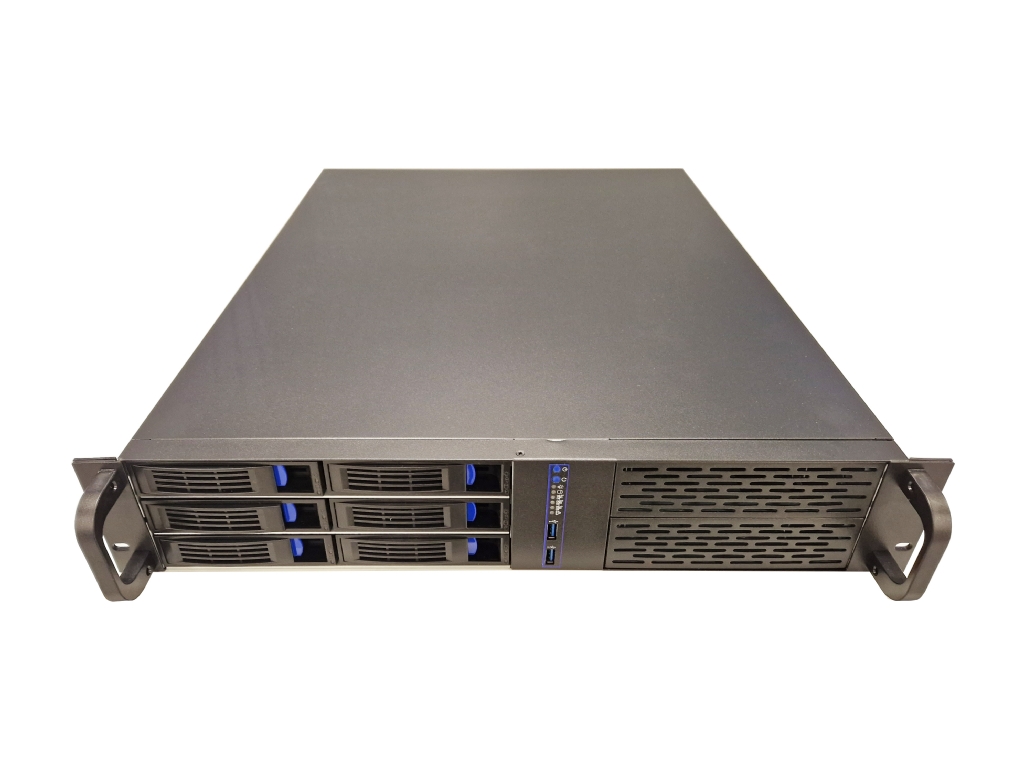

Photo 3
Photo 4
Photo 5

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-2306B-550B from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Specification Notes:


Note: Can be increased to 9 x 3.5" hot swap using SC-H300 hot swap caddy in the 2 x 5.25" bays

Note:  Add 2 x internal 2.5" HDD/SSD or 1 x 3.5" HDD by using internal bracket SC-BKT-006



Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7")
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 0
Hotswap 3.5" 6
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Six discrete SATA connectors, two 4-pin molex redundant power connectors 6 x hot-swappable SATA II, III /SAS 6G drive bays
Expansion Slots Full Height 0
Low Profile 7
Cooling 4 x 80mm Hot Swap mid fan wall
Power Supply Form Factor Standard 2U power supply
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 21.6" x 3.5" (483mm x 550mm x 88mm)
Weight 11.25 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
