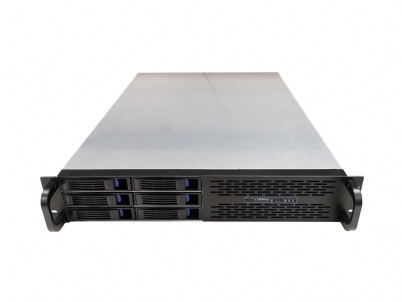

2U Server Case w/ 6x 3.5" Hot-Swappable SATA/SAS Drive Bays + 2 x 5.25" 550mm Deep Silver
Key Product Features:
- 2U Rackmount Form Factor
- 550mm Chassis Depth
- 483mm Chassis Width
- 88mm Chassis Height
- Standard ATX PSU Compatibility
- CEB (12" x 10.5") M/B Form Factor
- 3 Fixed Bays - Internal - 3.5"
- 6 Hot-Swap Bays - 3.5"
- 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-2306A-550
Buy Now
Server Case UK Ltd
Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-2306A-550 from Server Case UK
Call: 0800 652 1649 | Email: [email protected] | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 2U Rackmount | |
| Motherboard Compatibility | Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7") | |
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 3 | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 6 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Six discrete SATA connectors, two 4-pin molex redundant power connectors 6 x hot-swappable SATA II, III /SAS 6G drive bays | |
| Expansion Slots | Full Height | 0 |
| Low Profile | 7 | |
| Cooling | 4 x 80mm Hot Swap mid fan wall | |
| Power Supply Form Factor | Single 2U PSU (Rear Mounted) or Single ATX PSU (80mm Fan Only - Front Mounted) | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Silver | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 19" x 21.6" x 3.5" (483mm x 550mm x 88mm) | |
| Weight | 11.25 kg (Approx) | |
| What's Included | ||
|
||
