2U Server Case w/ 8x 3.5" Hot-Swappable SATA/SAS Drive Bays, 6Gb/s MiniSAS

Key Product Features:

  • 2U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • 2U Single PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 2 Fixed Bays - Internal - 3.5"
  • 8 Hot-Swap Bays - 3.5"
  • 1 Slim ODD
  • 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-2308
2U Server Case w/ 8x 3.5

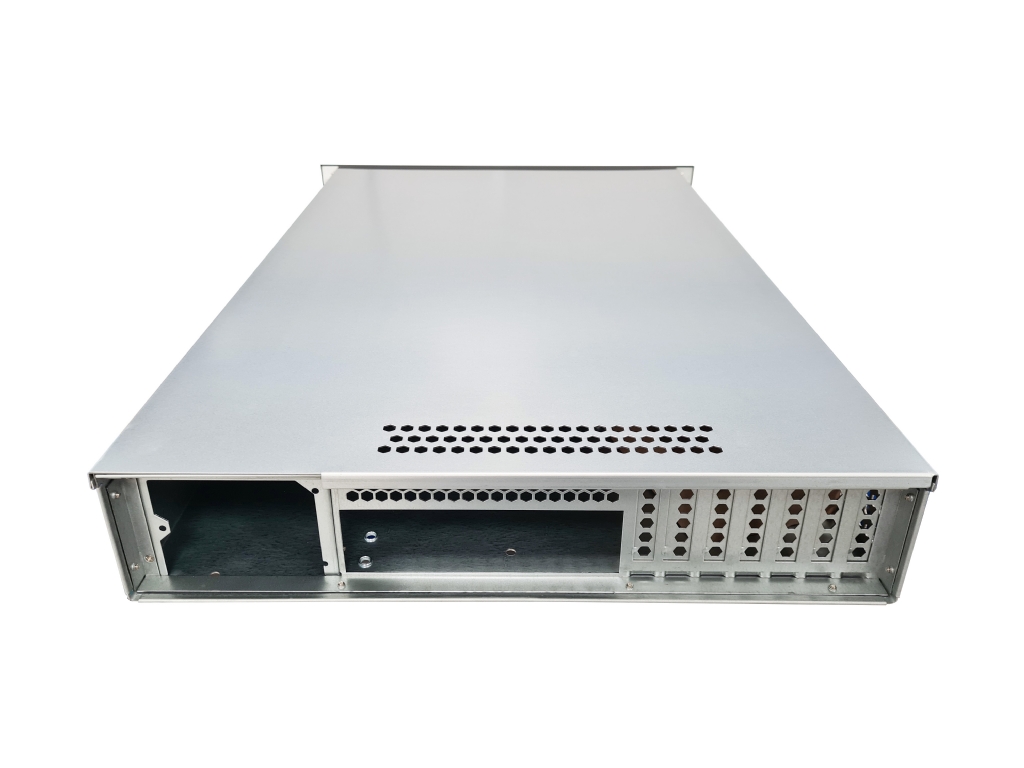

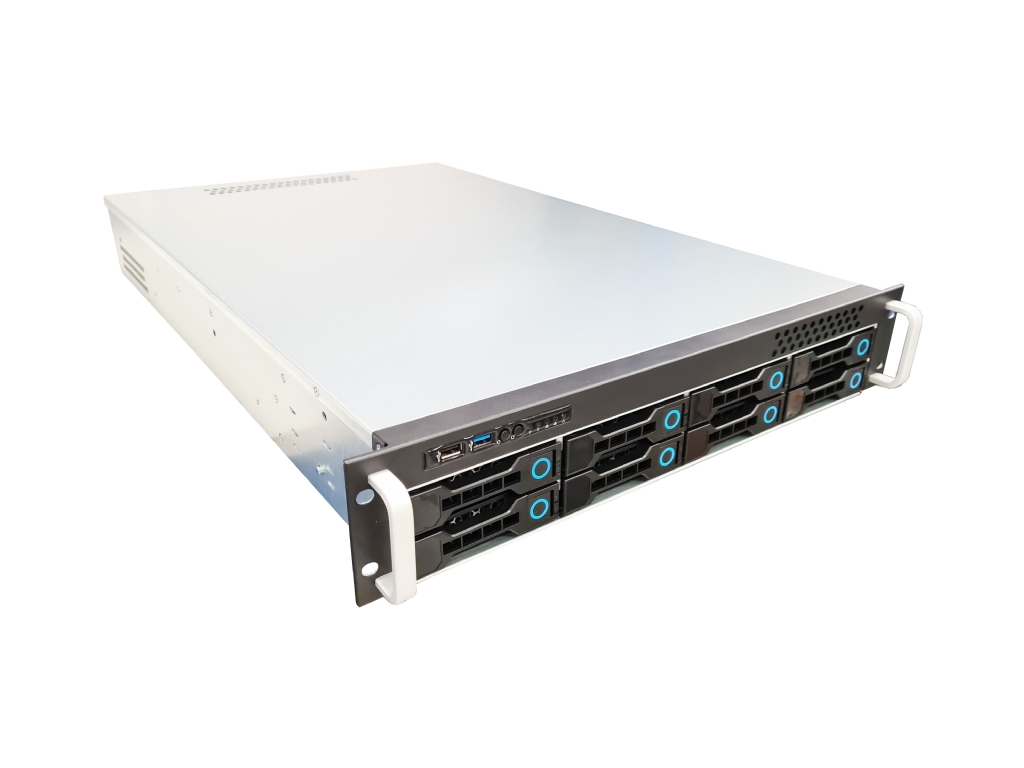

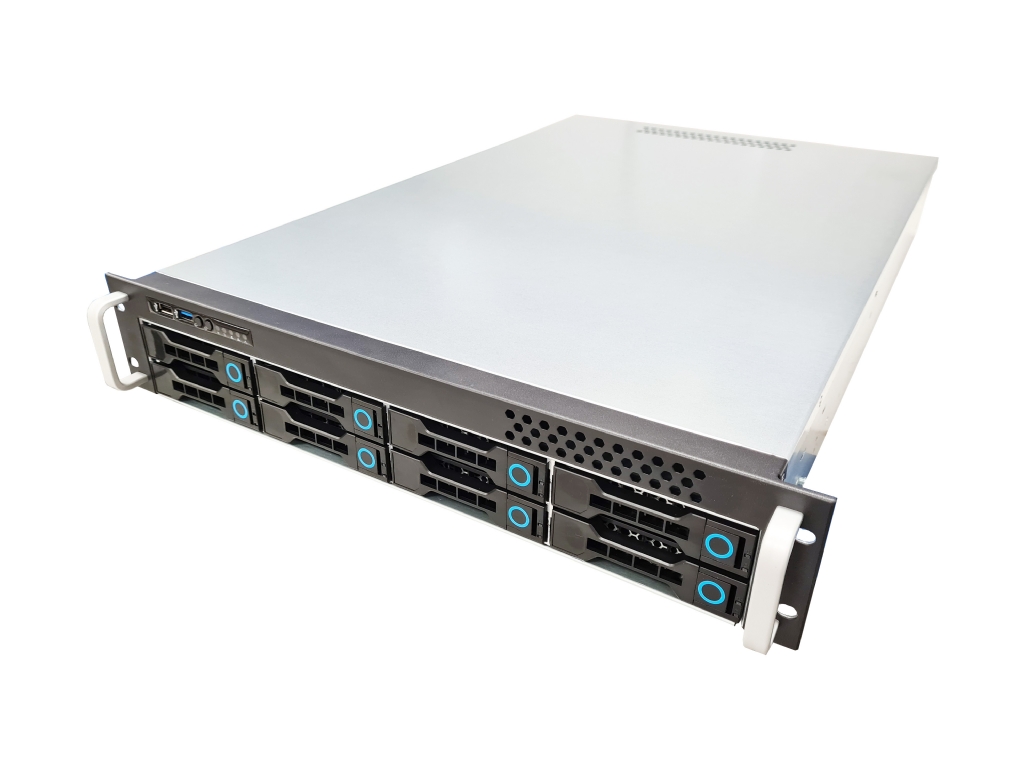

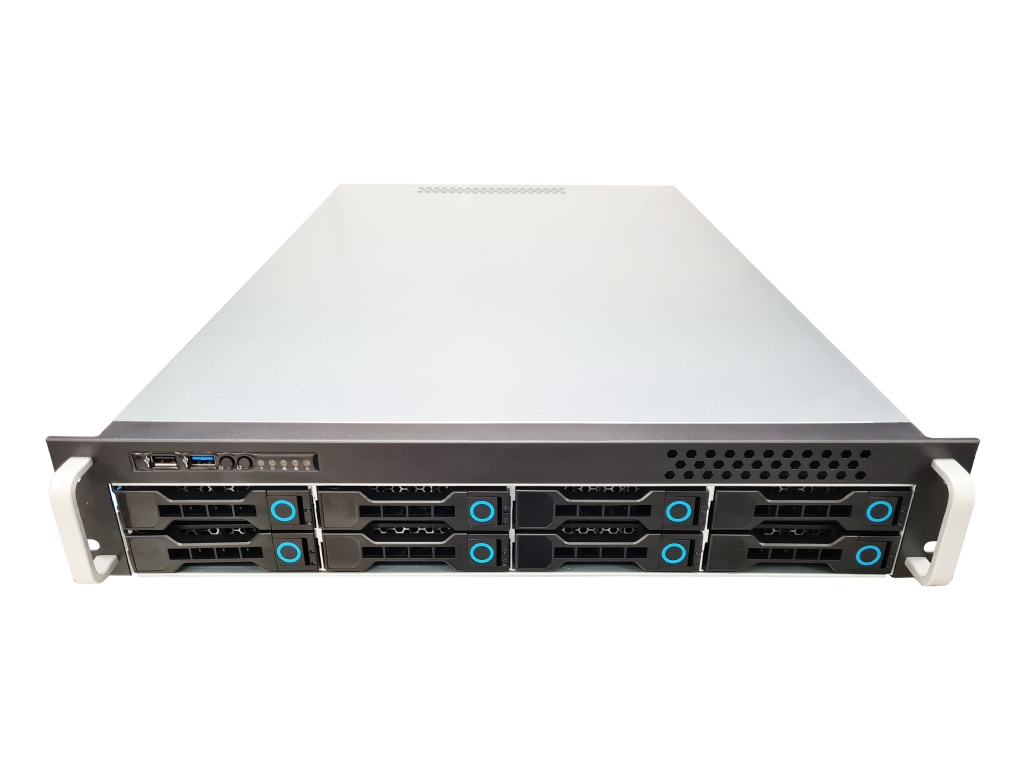

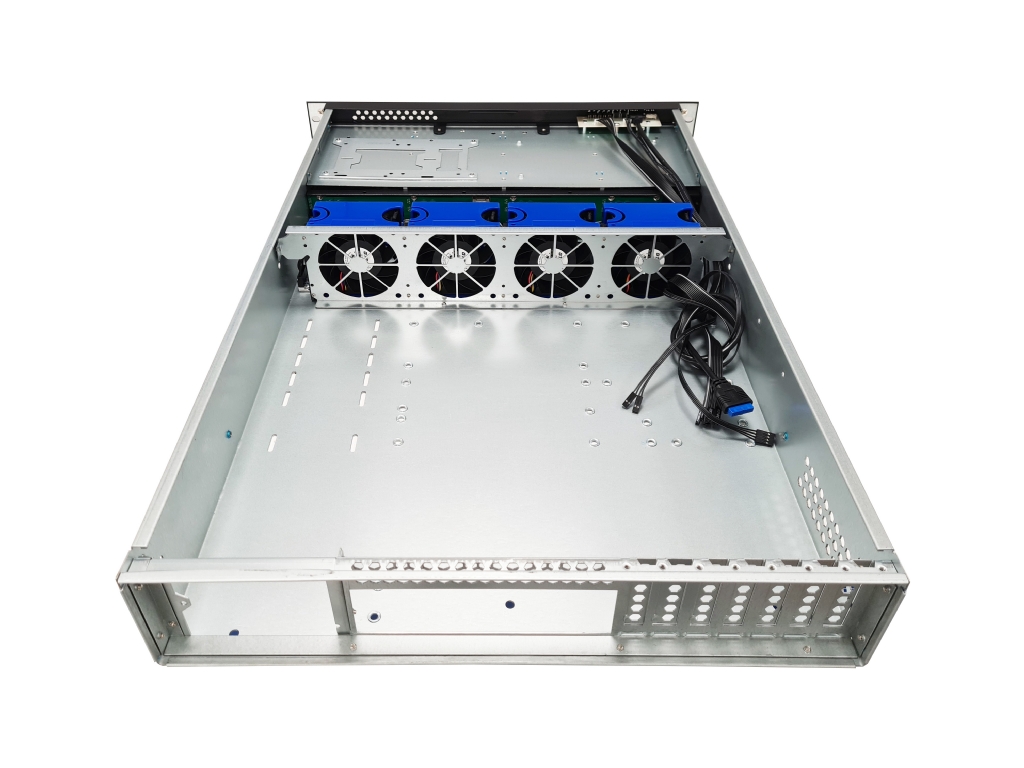

Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-2308 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 2
Hotswap 3.5" 8
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0

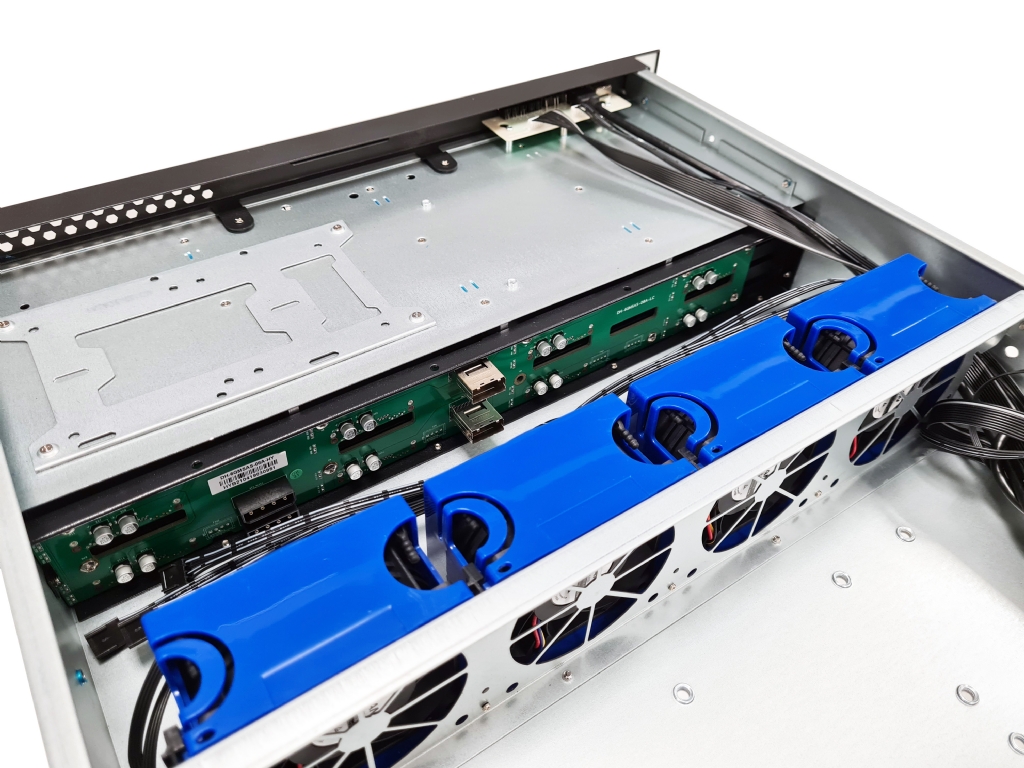

Hot-Swap Backplane 8x SATA/SAS Hot-Swap with 2x MiniSAS (SFF-8087) Connectors
Expansion Slots Full Height 0
Low Profile 7

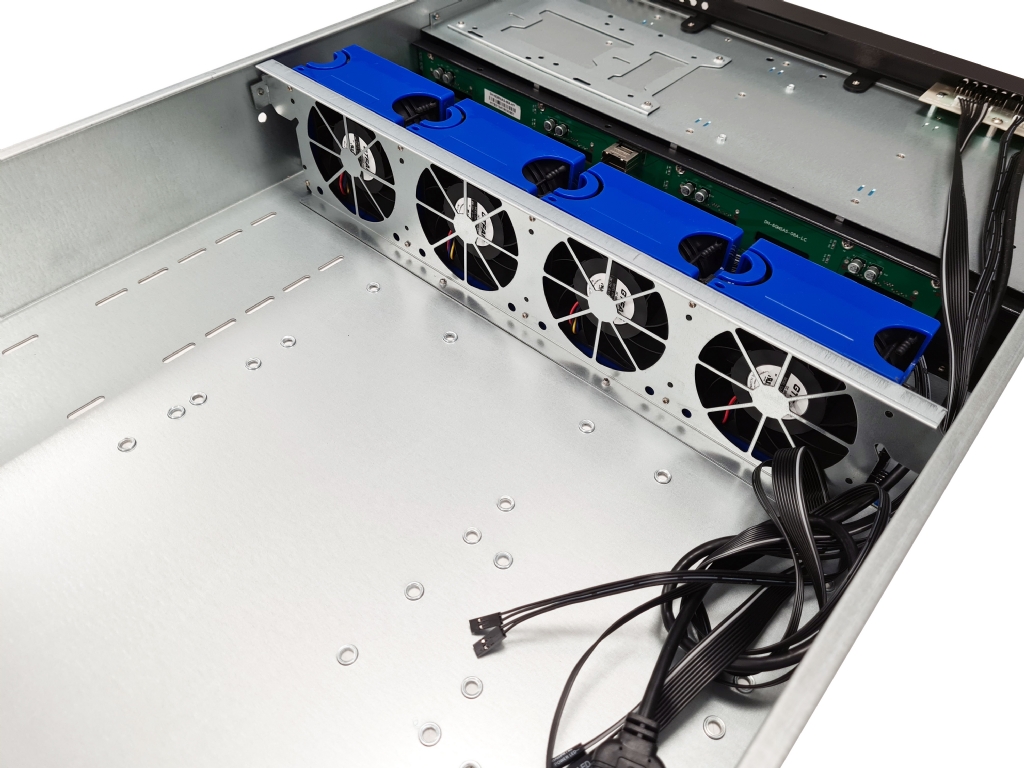

Cooling 4x 80mm Hot-Swap High CFM PWM Fans
Power Supply Form Factor Single 2U
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 1
USB 3.0 1
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Silver
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 25.5" x 3.5" (483mm x 650mm x 88mm)
Weight 12.6 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
