2U Server Case w/ 8x 3.5" Hot-Swappable SATA/SAS Drive Bays, MiniSAS + 2 x 2.5" Internal O/S + 1 x Slimline DVD
Key Product Features:
- 2U Rackmount Form Factor
- 680mm Chassis Depth
- 430mm Chassis Width
- 88.8mm Chassis Height
- 2U Single PSU Compatibility
- EEB (12" x 13") M/B Form Factor
- 2 Fixed Bays - Internal - 2.5"
- 8 Hot-Swap Bays - 3.5"
- 1 Slim ODD
- 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-2808
Buy Now
Server Case UK Ltd
Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-2808 from Server Case UK
Call: 0800 652 1649 | Email: [email protected].uk | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 2U Rackmount | |
| Motherboard Compatibility | Mini-ITX, Micro ATX, Standard ATX, Extended ATX | |
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 0 | |
| Internal 2.5" | 2 | |
| Hotswap 3.5" | 8 (or 2.5") | |
| Hotswap 2.5" | 8 (or 3.5") | |
| Slim Optical | 1 | |
| Slim FDD | 0 | |

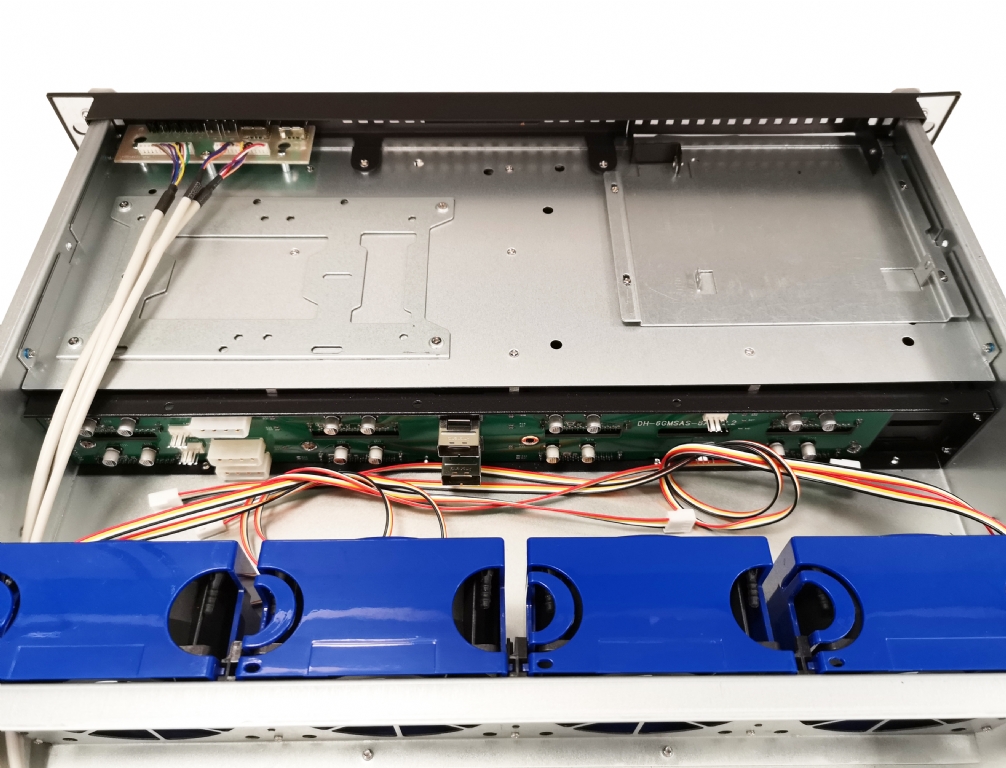

| Hot-Swap Backplane | 8x SATA/SAS 6Gbps Hot-Swap Bays - 2x MiniSAS SFF-8087 Connectors, 3x Molex Power Connectors | |
| Expansion Slots | Full Height | 0 |
| Low Profile | 7 | |

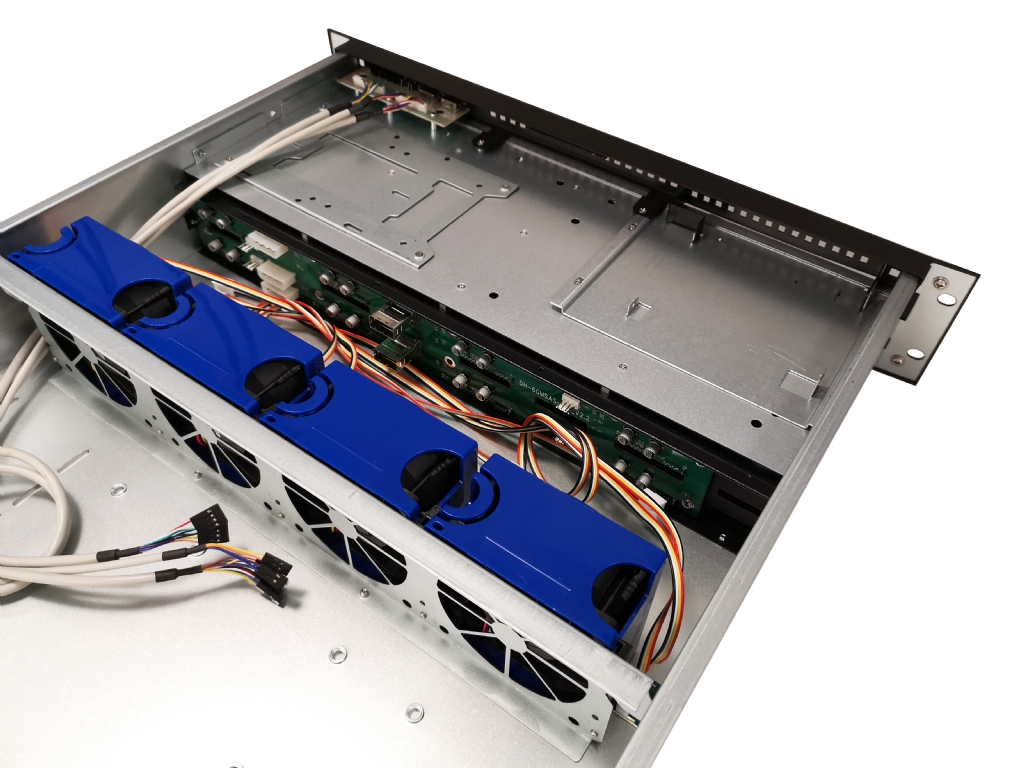

| Cooling | 4x 80mm High Speed PWM Hot-Swap Fans | |
| Power Supply Form Factor | 2U Single | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Silver | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | 680mm Depth X 430mm Width X 88.8mm Height | |
| Weight | 21kg (Approx) | |
| What's Included | ||
|
||
