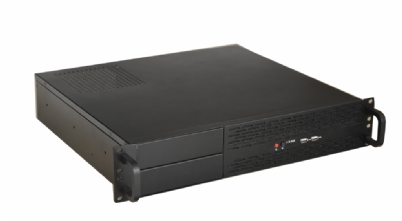

2U Short ATX Chassis - All Black with top vented lid and PWM Fans

Key Product Features:

  • 2U Rackmount Form Factor
  • 400mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • Micro ATX M/B Form Factor
  • 2 Fixed Bays - External - 5.25"
  • 2 Fixed Bays - Internal - 3.5"
  • 4 Low Profile PCI Expansion Slots
Product Code/SKU: SC-23400-2KRB-OEM
2U Short ATX Chassis - All Black with top vented lid and PWM Fans
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-23400-2KRB-OEM from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications



Technical Details
Case Form Factor 2U Short Depth Rackmount
Motherboard Compatibility Support Micro-ATX (9.6"x9.6"), ITX (6.7"x6.7") motherboard
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 2
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 0
Low Profile 4
Cooling 3 x 50mm High Performance ball bearing fans (4500 RPM, 15.5 CFM, 25 Dba) 4 Pin Headers.  Pulse Width Modulation Type (Variable Speed)
Power Supply Form Factor Standard ATX power supply can accept 80mm through fans or 120mm/140mm top mounted fan designs.
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 16.9" x 15.75" x 3.5" (430mm x 400mm x 88mm)
Weight 7.85 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
