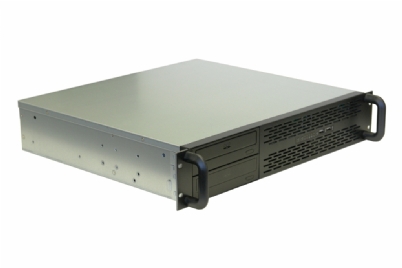

2U Short ATX Chassis - Low Profile PCI Card Support
Key Product Features:
- 2U Rackmount Form Factor
- 400mm Chassis Depth
- 430mm Chassis Width
- 88mm Chassis Height
- Standard ATX PSU Compatibility
- Micro ATX M/B Form Factor
- 2 Fixed Bays - External - 5.25"
- 2 Fixed Bays - Internal - 3.5"
- 4 Low Profile PCI Expansion Slots
Product Code/SKU: SC-23400-2
Buy Now
Server Case UK Ltd
Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-23400-2 from Server Case UK
Call: 0800 652 1649 | Email: [email protected] | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 2U Rackmount | |
| Motherboard Compatibility | Supports Micro-ATX (9.6"x9.6"), ITX (6.7"x6.7") | |
| Drive Bays |
External 5.25" |
2 |
| External 3.5" | 0 | |
| Internal 3.5" | 2 | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 0 |
| Low Profile | 4 | |
| Cooling | 3 x 50mm ball bearing fans | |
| Power Supply Form Factor | Standard ATX power supply with 80mm fans. (2U cases are too shallow for 120MM or 140mm top fan PSU's) | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 16.9" x 15.75" x 3.5" (430mm x 400mm x 88mm) | |
| Weight | 7.5 kg (Approx) | |
| What's Included | ||
|
||
