2U Short ATX Chassis - Low Profile PCI Card Support

Key Product Features:

  • 2U Rackmount Form Factor
  • 400mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • Micro ATX M/B Form Factor
  • 1 Fixed Bays - External - 5.25"
  • 4 Fixed Bays - Internal - 3.5"
  • 4 Low Profile PCI Expansion Slots
Product Code/SKU: SC-23400-4
2U Short ATX Chassis - Low Profile PCI Card Support

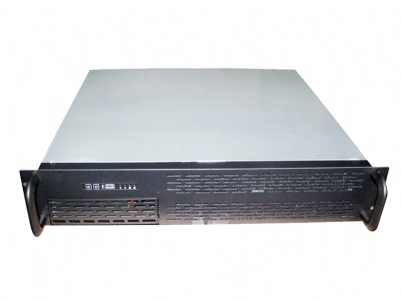

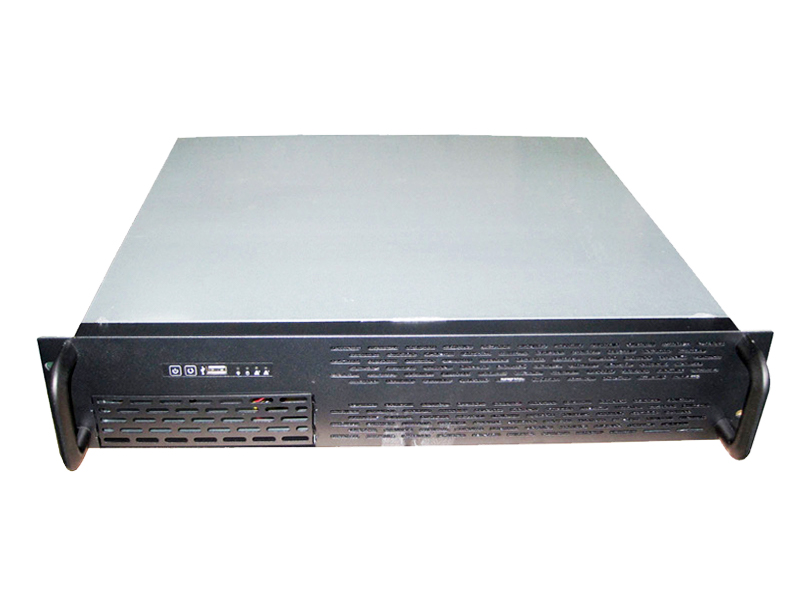

Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-23400-4 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 2U Short Rackmount
Motherboard Compatibility Micro-ATX (9.6" X 9.6") motherboard and Mini-ITX (6.7" X 6.7")
Drive Bays

External 5.25"

1
External 3.5" 0
Internal 3.5" 4
Important Note: Some motherboards may interfere with the fitment of 2x of the Hard Drive Bays - Please check with us first before ordering to ensure compatibility.
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 0
Low Profile 4
Cooling 2 X 80mm Fans
Power Supply Form Factor Standard ATX power supply with 80mm fans.  (2U cases are too shallow for 120MM or 140mm top fan PSU's)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 16.9" x 15.75" x 3.5" (480mm x 400mm x 88mm)
Weight 7.50 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
