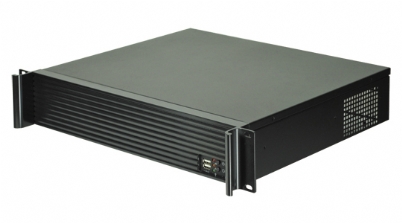

2U Short Depth Chassis - Supports 5x 3.5" Internal Bays

Key Product Features:

  • 2U Rackmount Form Factor
  • 380mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • 1U Single PSU Compatibility
  • Standard ATX M/B Form Factor
  • 5 Fixed Bays - Internal - 3.5"
  • 3 Full Height PCI Expansion Slots
  • 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-2380
2U Short Depth Chassis - Supports 5x 3.5
Photo 1
Photo 2
Photo 3
Photo 4

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-2380 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk



Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX
Drive Bays

External 5.25"

External 3.5" 0
Internal 3.5" 6x Bays Total
Important Note: 6x Bays Usable with Mini ITX Motherboard Only
Important Note: 4x Bays Usable with Micro ATX or Standard ATX Motherboard
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 3 Via Riser
Low Profile 4 (bracket SC-BKT009 allows backplate conversion to allow 7 x Low Profile PCI expansion slots (need to purchase 6 x BKT009)
Cooling 3 x 80mm fans
Power Supply Form Factor Standard 1U
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Double Box
Dimensions ( W x D x H ): 19" x 15" x 3.5" (483mm x 400mm x 88mm)
Weight 8.5 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
