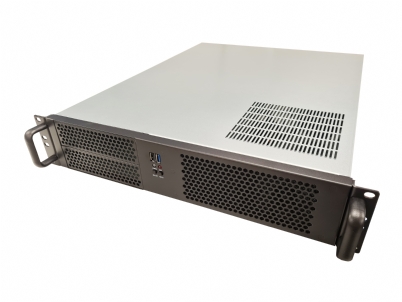

2U Short Depth Chassis - Supports 6x 3.5" Internal Bays

Key Product Features:

  • 2U Rackmount Form Factor
  • 550mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 2 Fixed Bays - External - 5.25"
  • 6 Fixed Bays - Internal - 3.5"
  • 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-24550
2U Short Depth Chassis - Supports 6x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-24550 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX (12" x 10.5" Maximum)
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 6
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 0
Low Profile 7
Cooling 4x 80mm Middle Fan Wall
2x 80mm Front Optional
1x 60mm Rear Optional
Power Supply Form Factor Standard ATX - Front Mounted - 80mm Fan Only
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 430mm X 88mm X 550mm (WxHxD mm)
Weight 10kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
