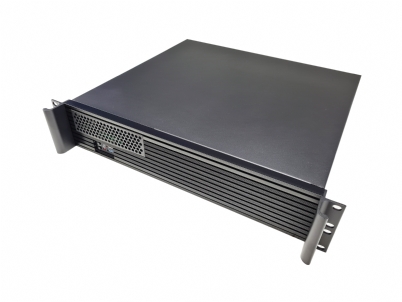

2U Short Depth Chassis Ideal for Wall Rack/Appliance Servers - 400mm Depth
Key Product Features:
- 2U Rackmount Form Factor
- 400mm Chassis Depth
- 482mm Chassis Width
- 88.8mm Chassis Height
- Standard ATX PSU Compatibility
- CEB (12" x 10.5") M/B Form Factor
- 1 Fixed Bays - External - 5.25"
- 7 Fixed Bays - Internal - 3.5"
- 4 Low Profile PCI Expansion Slots
Product Code/SKU: SC-21400
Buy Now
Server Case UK Ltd
Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-21400 from Server Case UK
Call: 0800 652 1649 | Email: [email protected] | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 2U Rackmount | |
| Motherboard Compatibility | Mini-ITX, Micro ATX | |
| Drive Bays |
External 5.25" |
1 |
| External 3.5" | 0 | |
| Internal 3.5" | 7x (Important Note: 4x Bays Not Accessible when Micro ATX Motherboard Used) | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 0 |
| Low Profile | 4 | |
| Cooling | 2 x 80mm Molex Power Input | |
| Power Supply Form Factor | Standard ATX - Note 80mm Fan Only | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 1 | |
| USB 3.0 | 2 | |
| Serial | 0 | |
| Indicators | Power and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | 482mm X 88.8mm X 400mm (WxHxD mm) | |
| Weight | 5kg (Approx) | |
| What's Included | ||
|
||
