2U Short Depth Chassis Ideal for Wall Rack/Appliance Servers

Key Product Features:

  • 2U Rackmount Form Factor
  • 400mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • Micro ATX M/B Form Factor
  • 6 Fixed Bays - Internal - 3.5"
  • 4 Low Profile PCI Expansion Slots
Product Code/SKU: SC-2400
2U Short Depth Chassis Ideal for Wall Rack/Appliance Servers

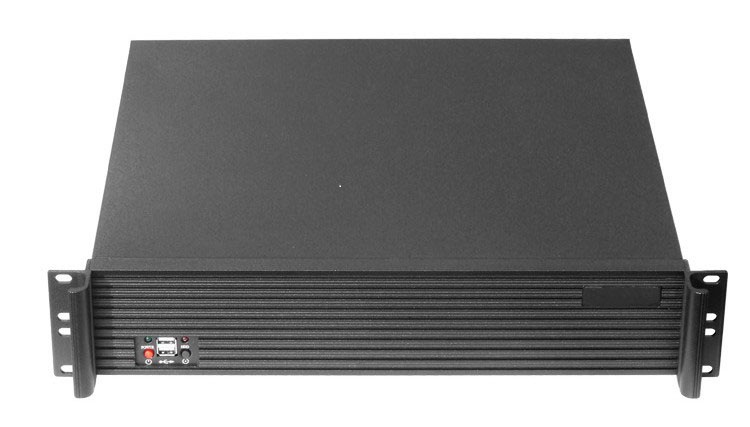

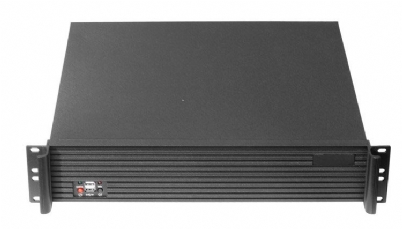

Photo 1
Photo 2
Photo 3

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-2400 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 2U Short Depth Rackmount
Motherboard Compatibility Supports Micro ATX 9.6" x 9.6" (24cm x 24cm) - See Note Below
Mini-ITX 6.7" x 6.7" (17cm x 17cm)
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 6x Bays Total
Important Note: 6x Maximum when Mini ITX Board Installed
Important Note: 4x Maximum when Micro ATX Board is Installed
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 0
Low Profile 4
Cooling 2 x 80mm Front Mounted
Power Supply Form Factor Standard ATX PS/2 80mm fan
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions D*W*H 400*430*88(mm) / 15.7"*16.9"*3.5" (Inches)
Weight 6.45 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
