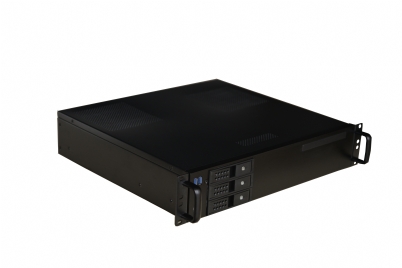

2U Short Depth HTPC Server Case w/ 3 x Hot Swap

Key Product Features:

  • 2U Rackmount Form Factor
  • 380mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • Micro ATX M/B Form Factor
  • 1 Fixed Bays - External - 3.5"
  • 3 Hot-Swap Bays - 3.5"
  • 1 Slim ODD
  • 4 Low Profile PCI Expansion Slots
Product Code/SKU: SC-23800-HTPC
2U Short Depth HTPC Server Case w/ 3 x Hot Swap
Photo 1
Photo 2
Photo 3

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-23800-HTPC from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications





Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility Support Micro-ATX (9.6"x9.6"), ITX (6.7"x6.7") motherboard
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 2
Internal 2.5" 1
Hotswap 3.5" 3
Hotswap 2.5" 0
Slim Optical 1
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 0
Low Profile 4
Cooling 2 x 80mm ball bearing fans
Power Supply Form Factor Standard ATX power supply
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 16.9" x 15.00" x 3.5" (430mm x 380mm x 88mm)
Weight 7.6 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
