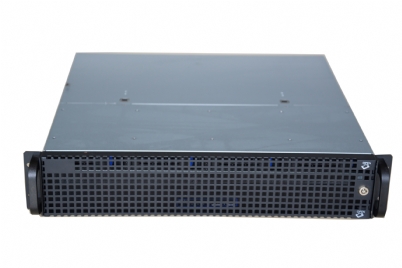

2U Short Storage Chassis w/ 4 x 3.5" SATA Hot-Swap Bays

Key Product Features:

  • 2U Rackmount Form Factor
  • 400mm Chassis Depth
  • 483mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • Micro ATX M/B Form Factor
  • 4 Hot-Swap Bays - 3.5"
  • 4 Low Profile PCI Expansion Slots
Product Code/SKU: SC-2404A
2U Short Storage Chassis w/ 4 x 3.5
Photo 1
Photo 2
Photo 3
Photo 4

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-2404A from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications



Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility

Support Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7") motherboard

Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 0
Hotswap 3.5" 4
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane mini SAS Backplane
Expansion Slots Full Height 0
Low Profile 4 (maximum PCI card length 200mm)
Cooling 3 x 40mm rear ball bearing fans
Power Supply Form Factor Standard ATX
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 15.74" x 7" (483mm x 400mm x 88mm)
Weight 8 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
