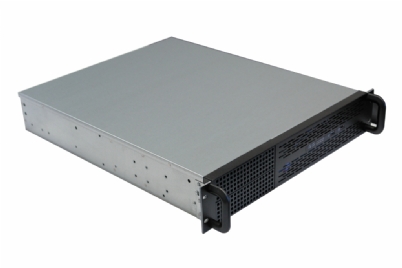

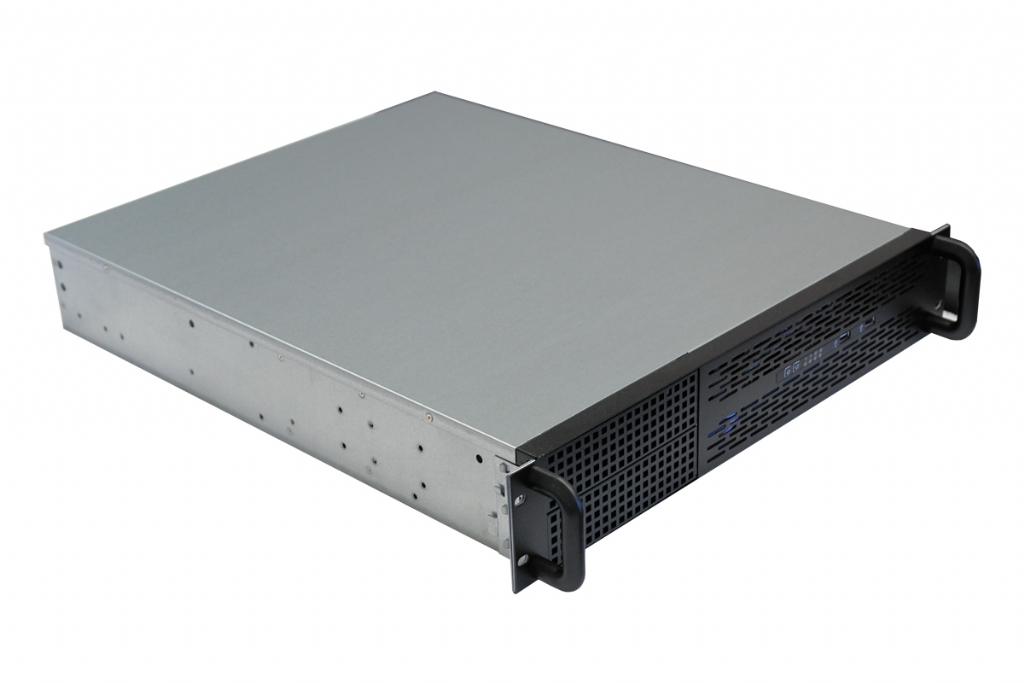

2U Standard Chassis 6 x 3.5" HDD + 2x 5.25" Bays
Key Product Features:
- 2U Rackmount Form Factor
- 550mm Chassis Depth
- 430mm Chassis Width
- 88mm Chassis Height
- Standard ATX PSU Compatibility
- CEB (12" x 10.5") M/B Form Factor
- 2 Fixed Bays - External - 5.25"
- 6 Fixed Bays - Internal - 3.5"
- 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-23550
Buy Now
Server Case
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-23550 from Server Case UK
Call: 01283 576162 | Email: [email protected] | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 2U Rackmount | |
| Motherboard Compatibility | Supports CEB(12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")motherboard | |
| Drive Bays |
External 5.25" |
2 |
| External 3.5" | 0 | |
| Internal 5.25" | 0 | |
| Internal 3.5" | 6 | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 0 |
| Low Profile | 7 | |
| Cooling |
4 x 80mm ball bearing fan wall for better ventilation plus optional 60mm rear exhaust fan if ATX PSU used |
|
| Power Supply Form Factor | Single 2U Industrial or Standard ATX (80mm Fans Only) | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Black | |
| Material | Steel | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | 19" x 21.6" x 3.5" (483mm x 550mm x 88mm) (WxDxH mm) | |
| Weight | 10.95 kg (Approx) | |
| What's Included | ||
|
||
